Focal Universal Modular Tweeters TWU 1.5 | Max power 100w

Focal Universal Modular Tweeters TWU1.5

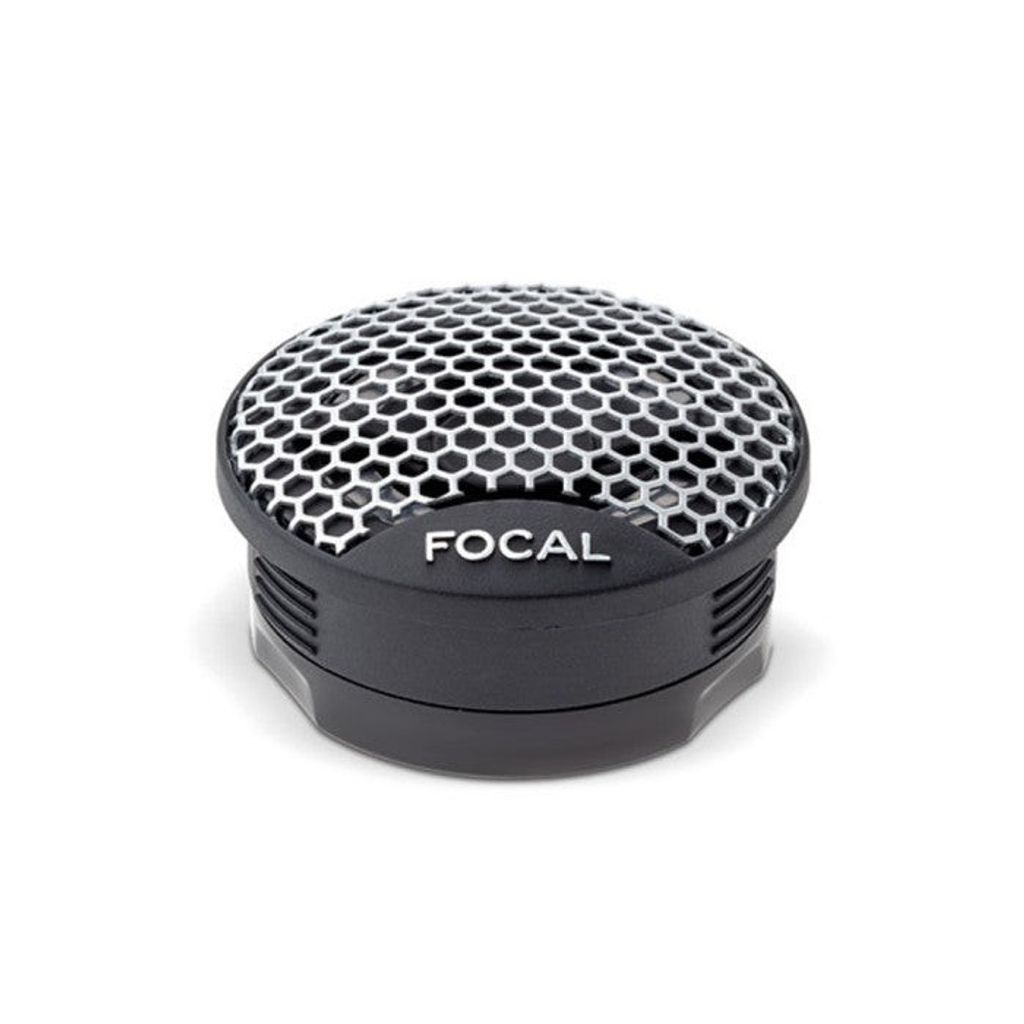

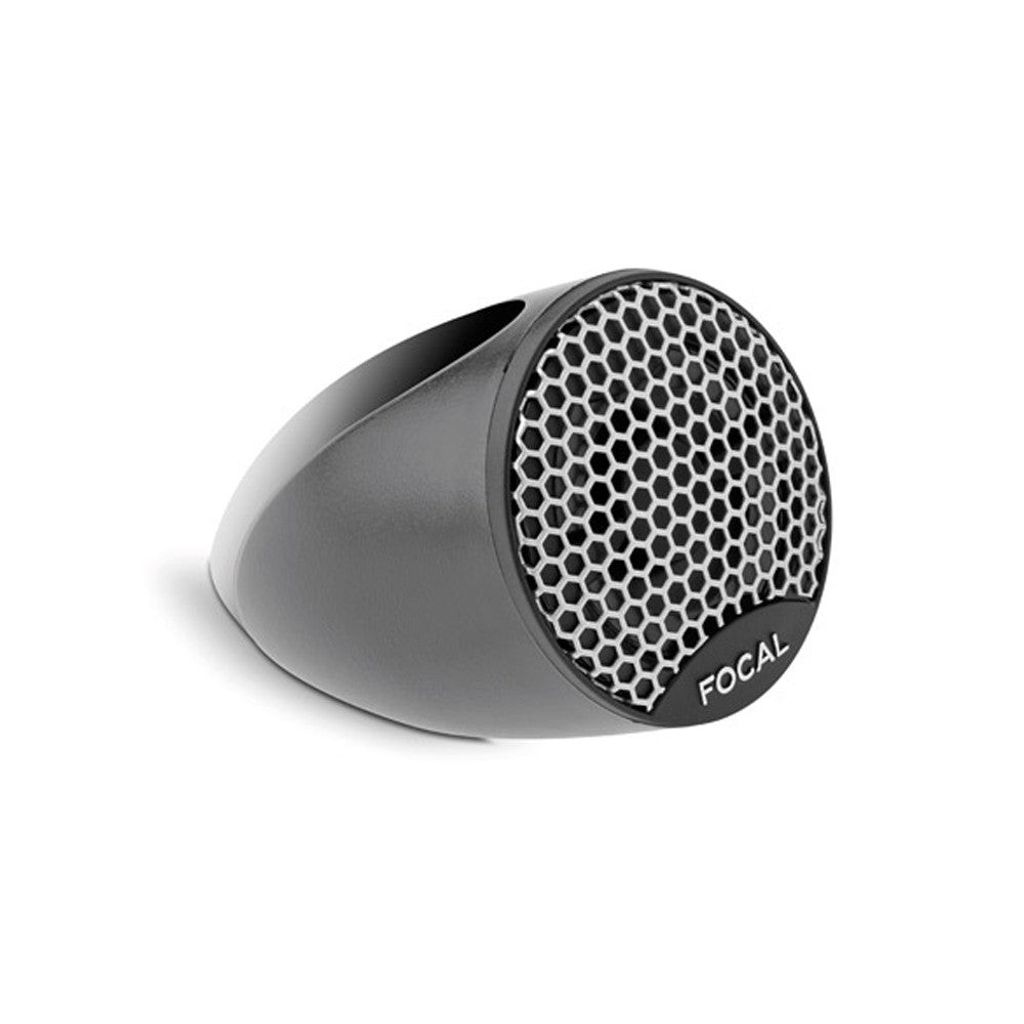

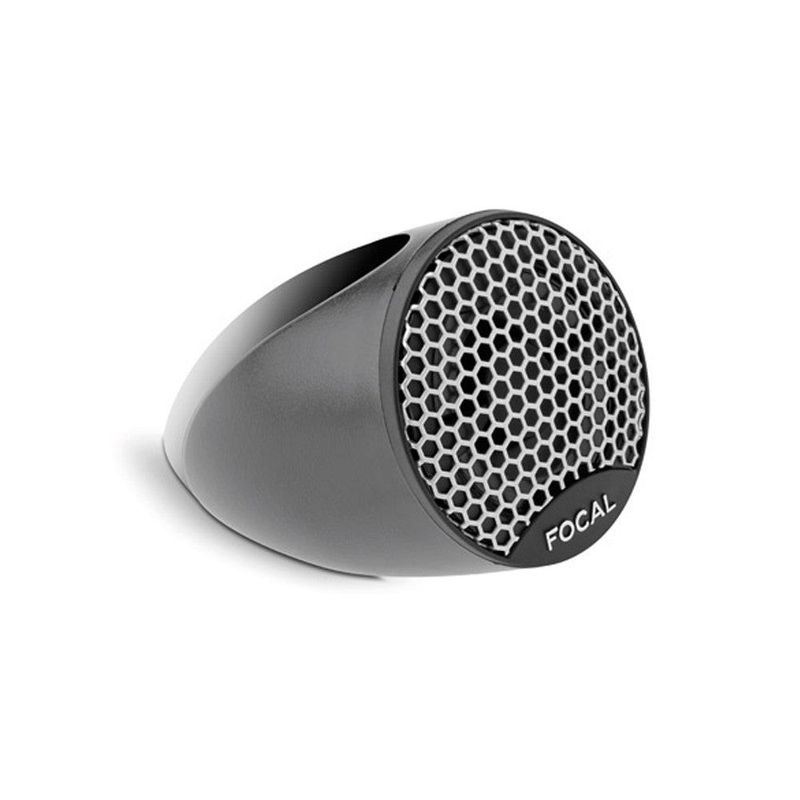

Easy to fit, four different mounting options are available: flush fit, on the angled stand, flat or straight behind the original grill, removing the tweeter from its Focal bracket.

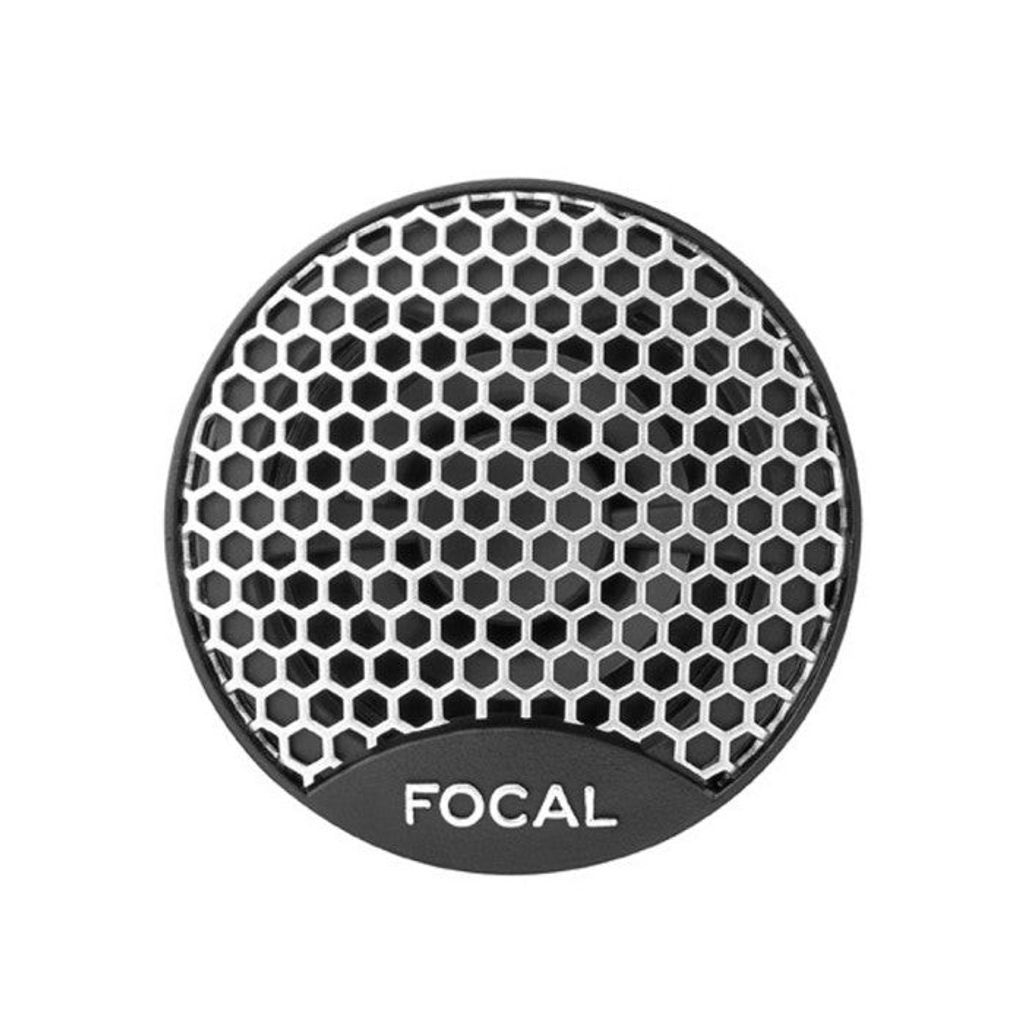

This inverted dome tweeter is made of aluminium / magnesium alloy. This gives the trebles an extended frequency response of up to 21 kHz, for clearer, more detailed reproduction.

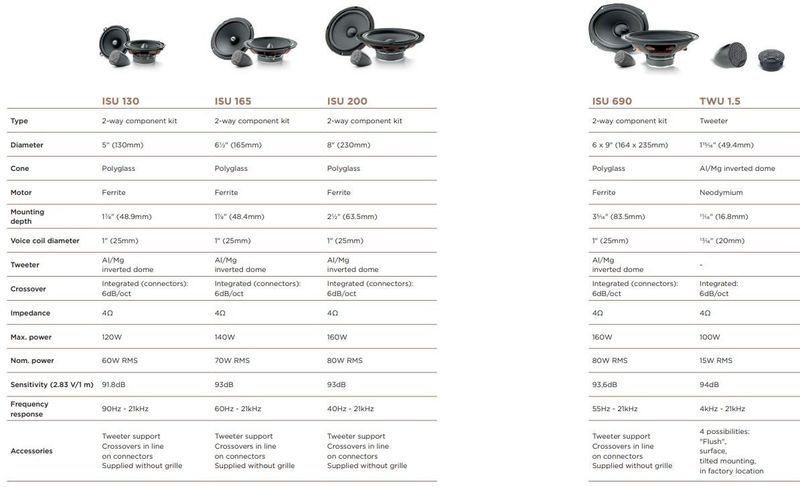

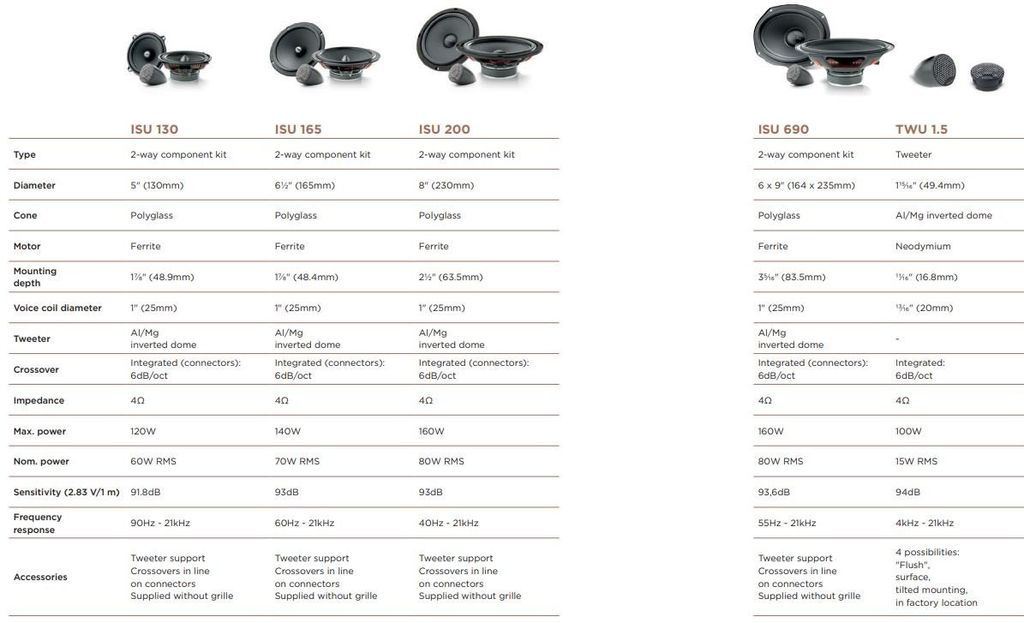

Specifications

• Nominal power: 15W RMS
• Maximum power: 100W
• Sensitivity (2,83V/1m): 94dB
• Frequency response: 4kHz-21kHz
• Surround type: Poron®
• Nom. impedance: 4Ω
• VC diameter: 20mm 0.8"
• Net weight: 40g 0.09lbs
• Dome: Al/Mg

Parameters

• Fs: 2.6kHz
• Re: 3.4Ω

Whats in the box

• 2 x Inverted dome tweeters (each with 5" length of speaker wire attached)
• 2 x Flush mount tweeter housings (with tweeters installed)

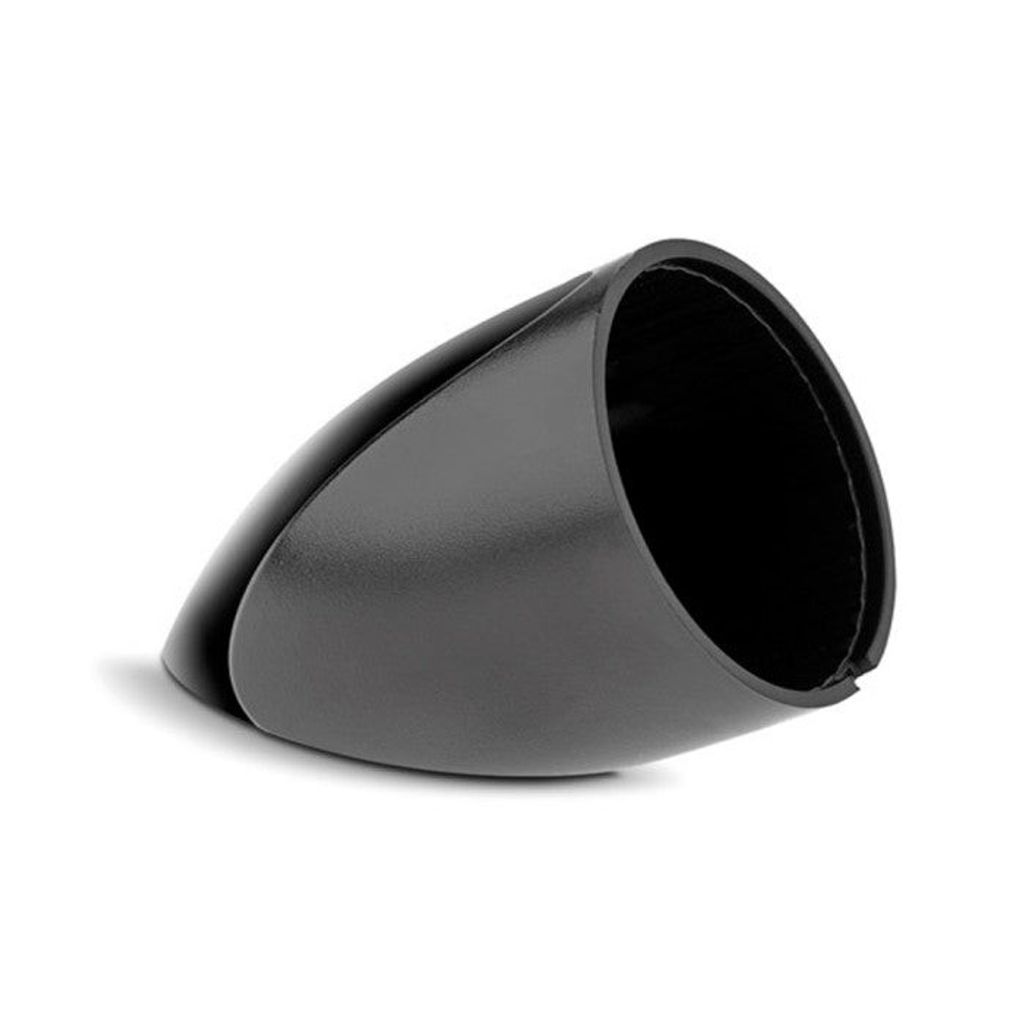

• 2 x Angled surface mount tweeter housings
• 2 x 19" Lengths of speaker wire with in-line crossovers
• 4 x 1" Flathead screws

Vehicle Application

Universal
