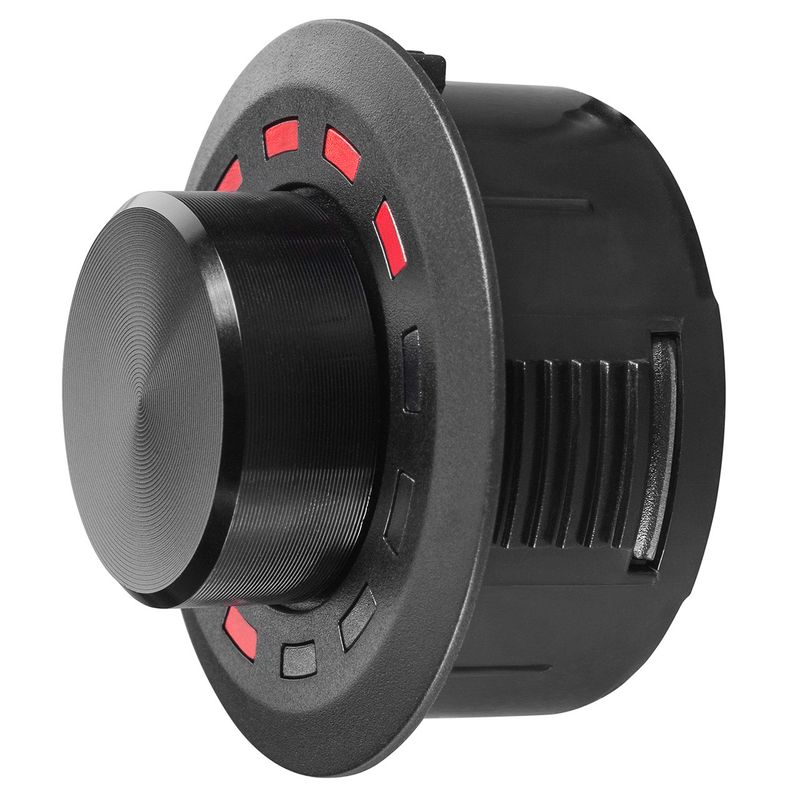

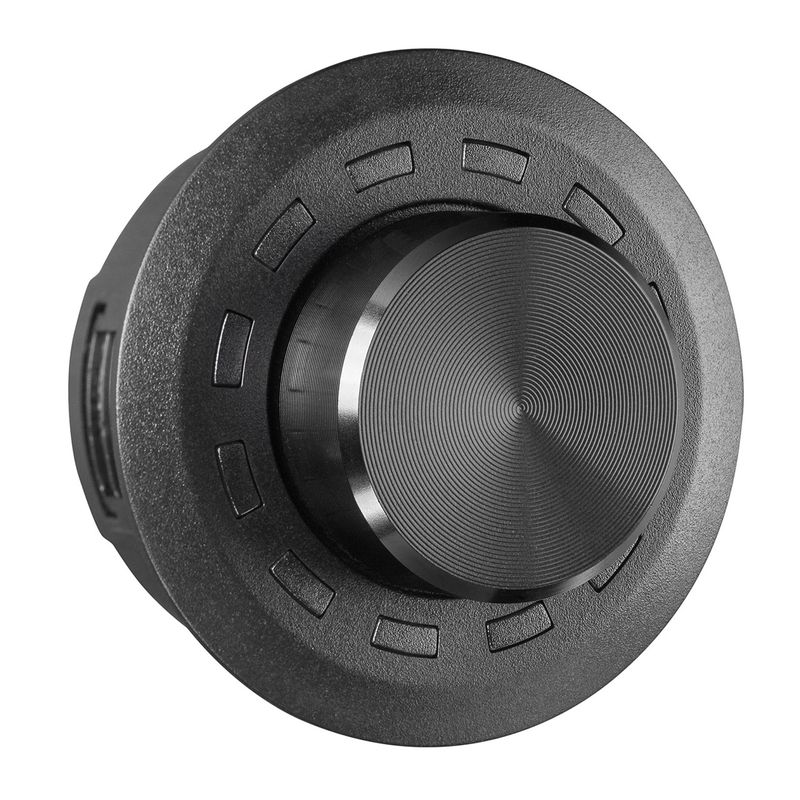

Beskrivning av HELIX Conductor for SCP

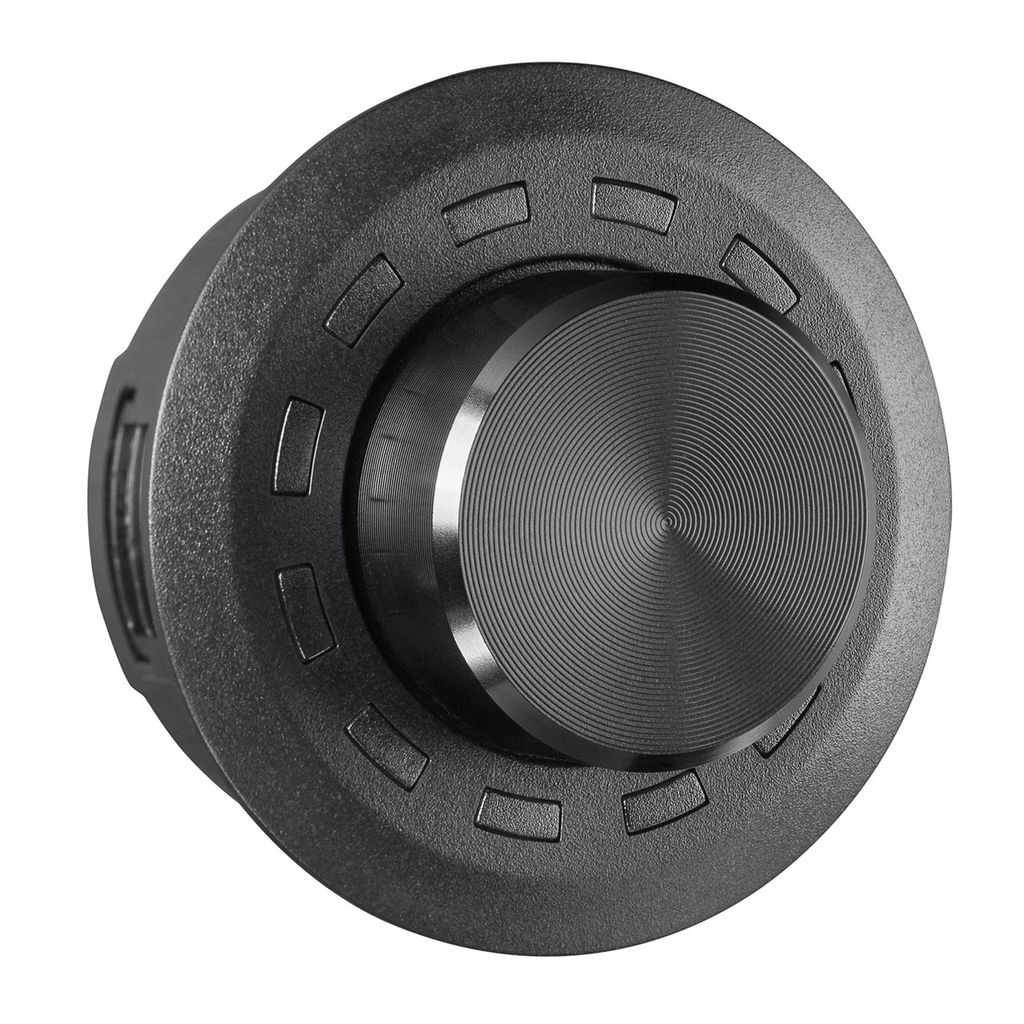

HELIX CONDUCTOR is ACO remote controller. SCP connection.

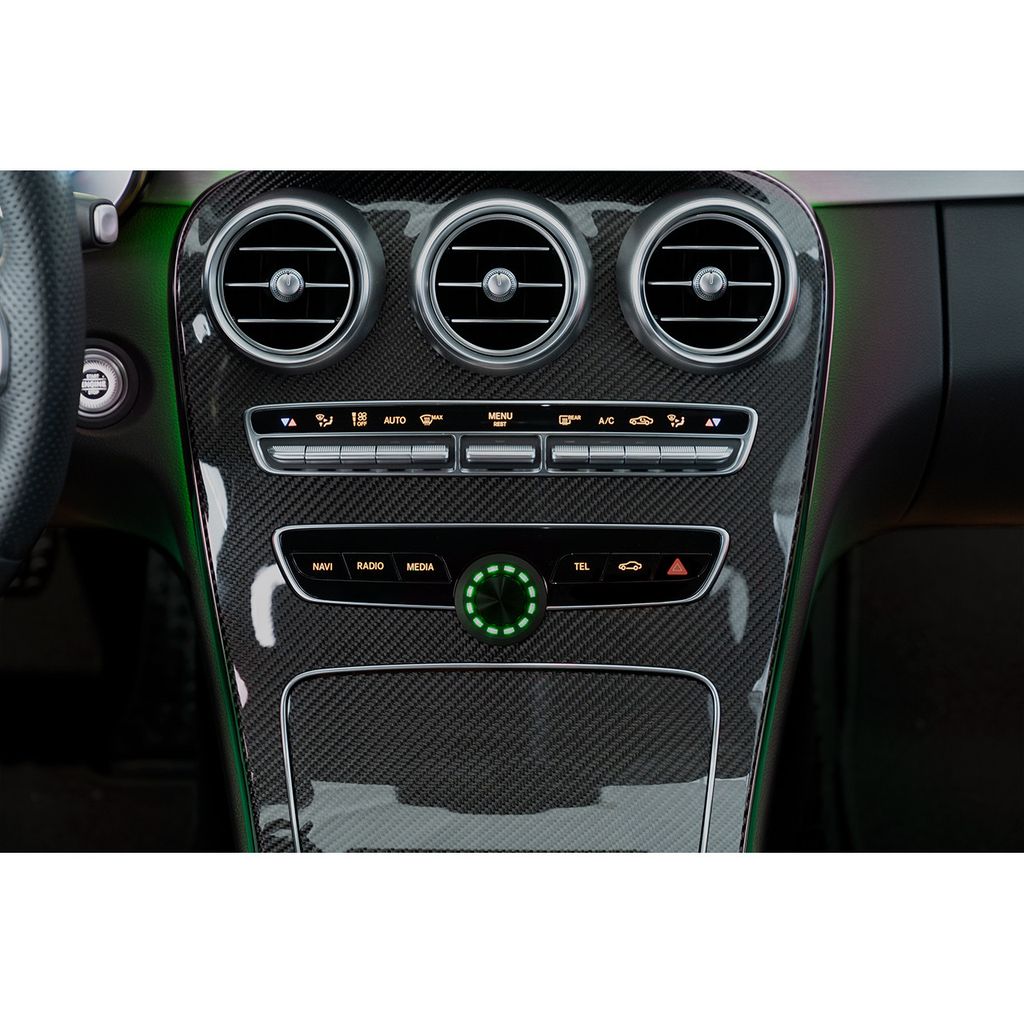

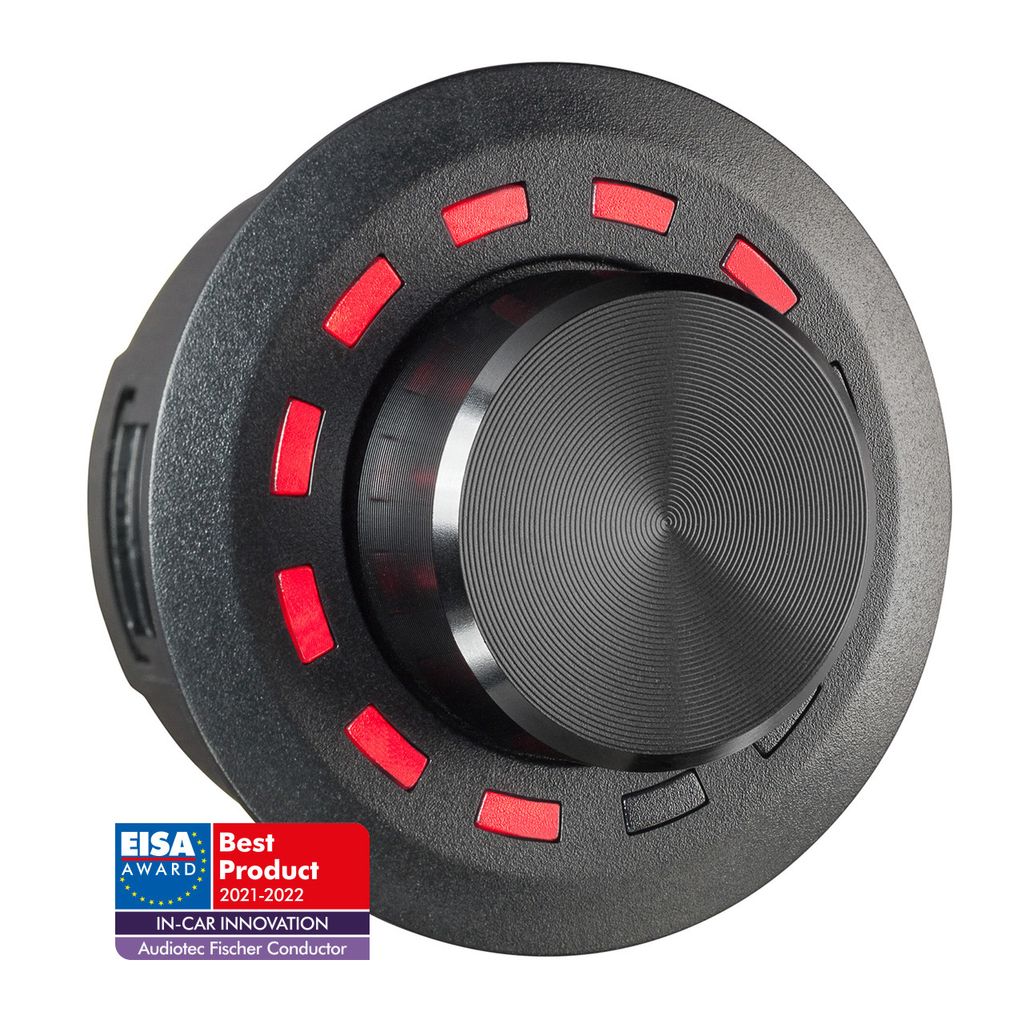

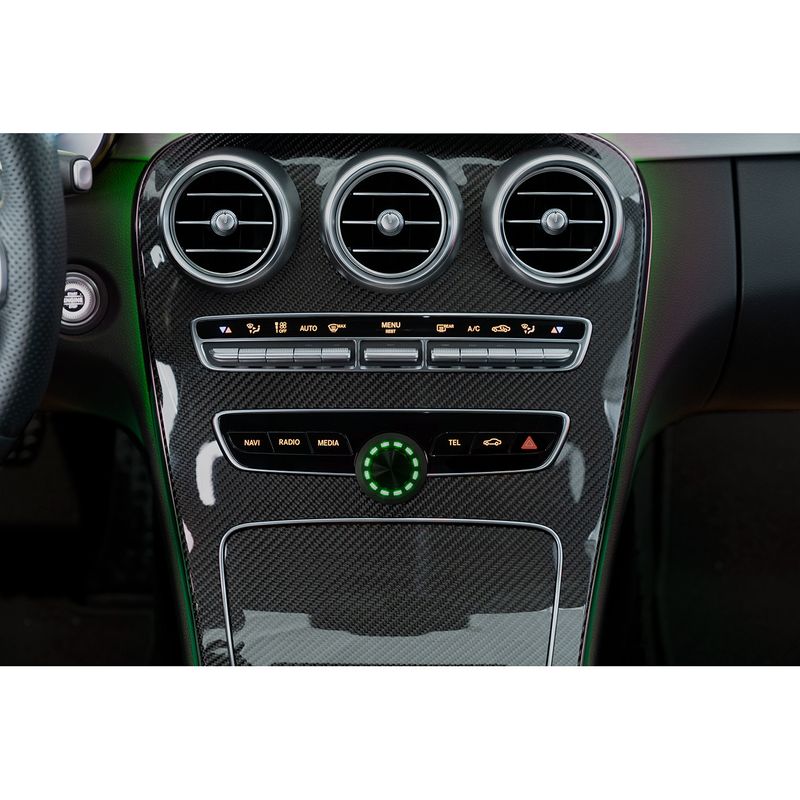

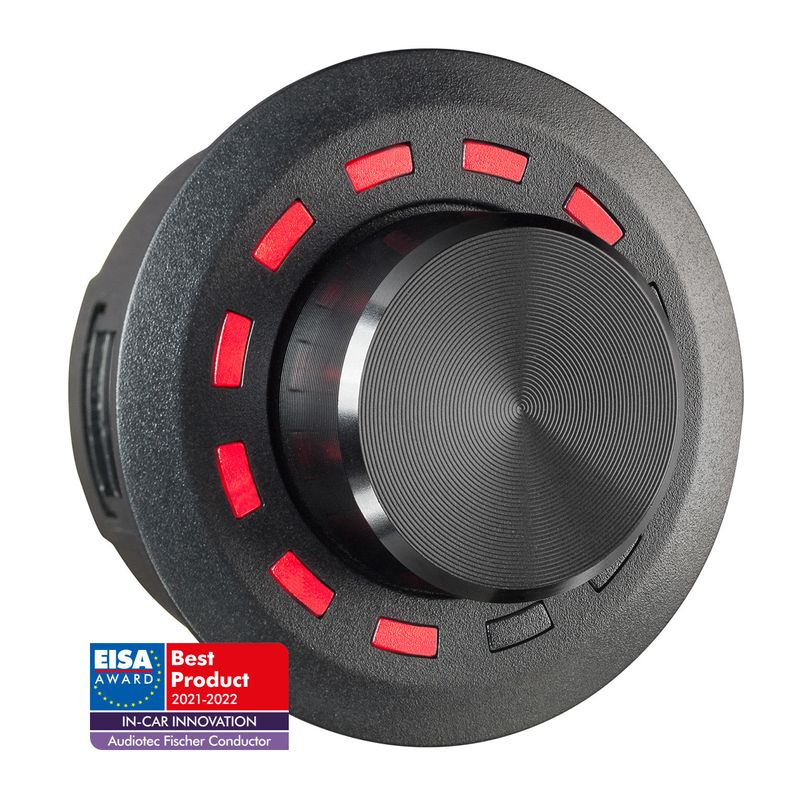

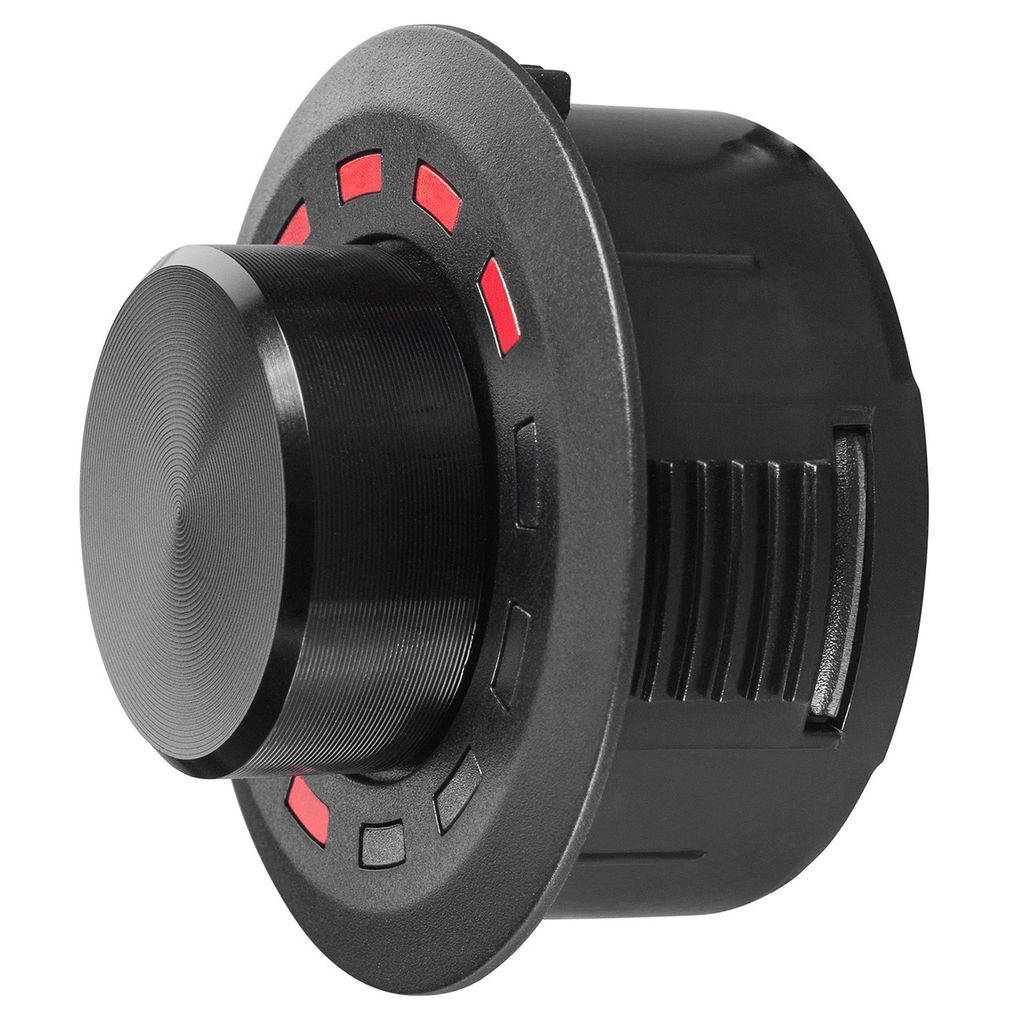

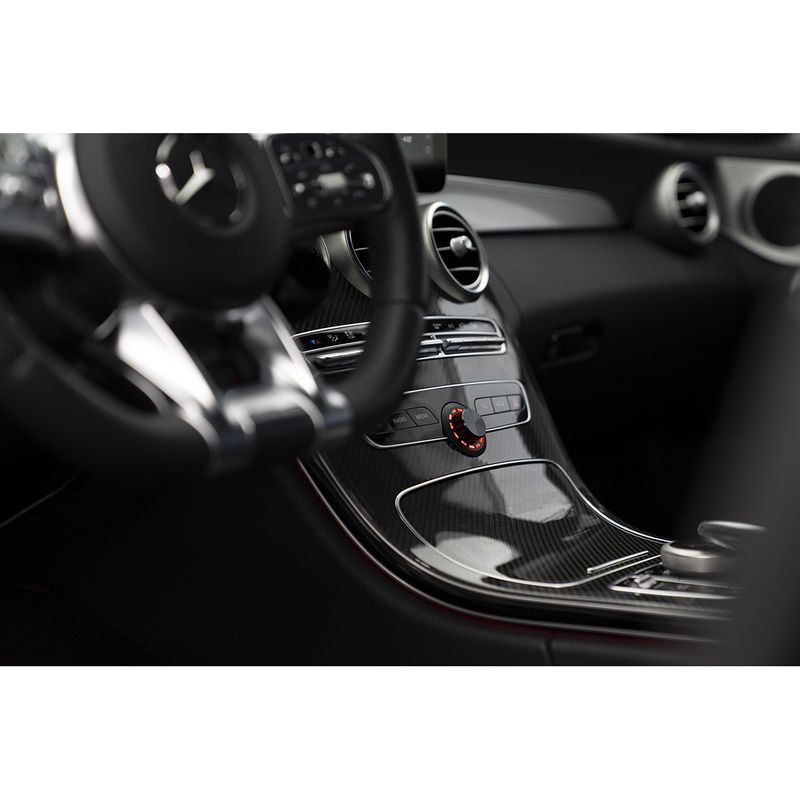

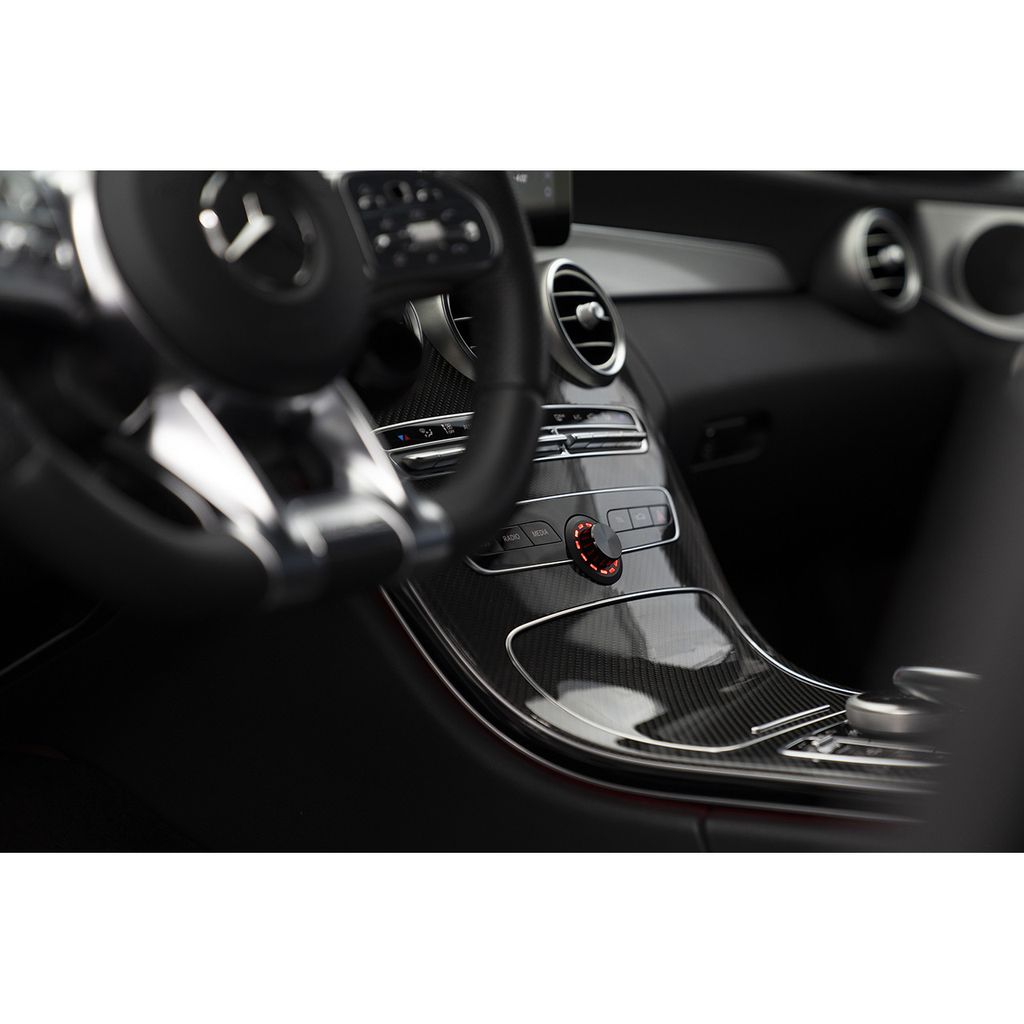

FEATURES: Up to 4 individual volume menus configurable (Master, Digital, HEC/AUX, Subwoofer, Rear Att.) • Volume range selectable (60 dB, 24 dB, 12 dB). • Volume steps selectable (1 dB steps, 0.5 dB steps). • Individual color for each volume menu configurable. Sound Setup selection between all 10 memory slots. Intuitive Bluetooth playback control and pairing activation (only for Bluetooth Extension Card). 12 x RGB-LEDs for visual feedback. • Wide color space with over 16 million colors. • Brightness and automatic dimming function configurable. Easy installation. • Flush mount installation with Ø 40 mm hole cut-out. • 5 m cable harness with split connector and single connector supply. • Optional housing for on-dash installation available soon. Full configuration and updatability through the DSP PC-Tool software. DSP PC-Tool 4.75a or higher.
COMPATIBILITY:
Helix:
DSP ULTRA S DSP PRO MK3 DSP.3S DSP MINI MK2 P SIX DSP ULTIMATE V EIGHTEEN DSP V TWELVE DSP MK2 AMPLIFY 206 DSP
MATCH:
UP 10DSP UP 10DSP – 24V Edition UP 8BMW UP 8DSP UP 6DSP UP 4DSP M 5.4DSP PP 86DSP MK2
Note: The CONDUCTOR is not compatible with the WIFI CONTROL or the DIRECTOR.
Note 2: The CONDUCTOR is not compatible with UP 7DSP / UP 7BMW
