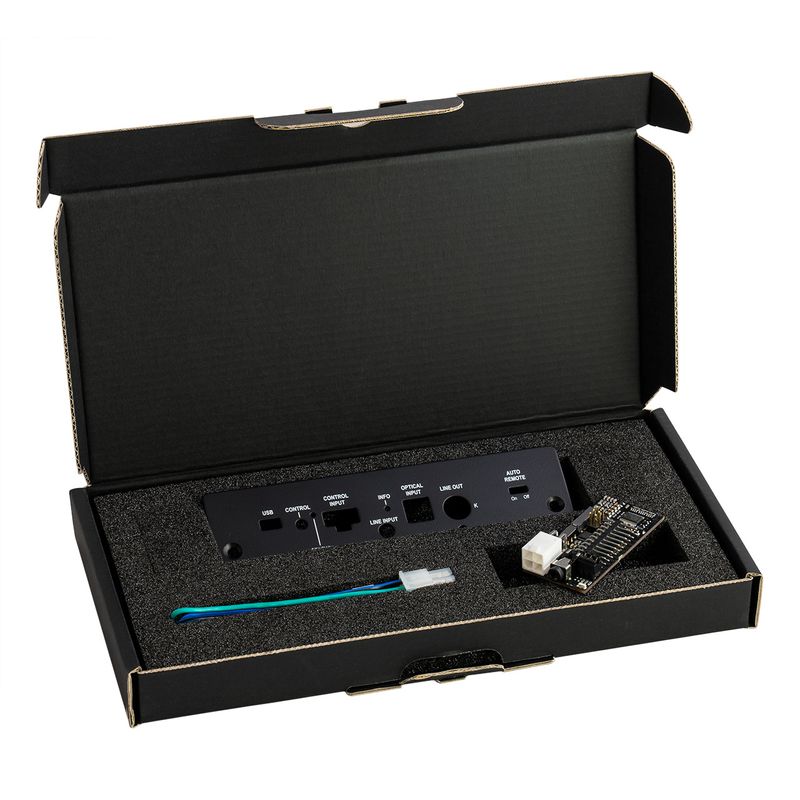

HEC ANALOG IN-P SIX DSP ULTIMATE

The HELIX Extension Card ANALOG IN extends HELIX products with two additional analog input channels. For example, the module allows to

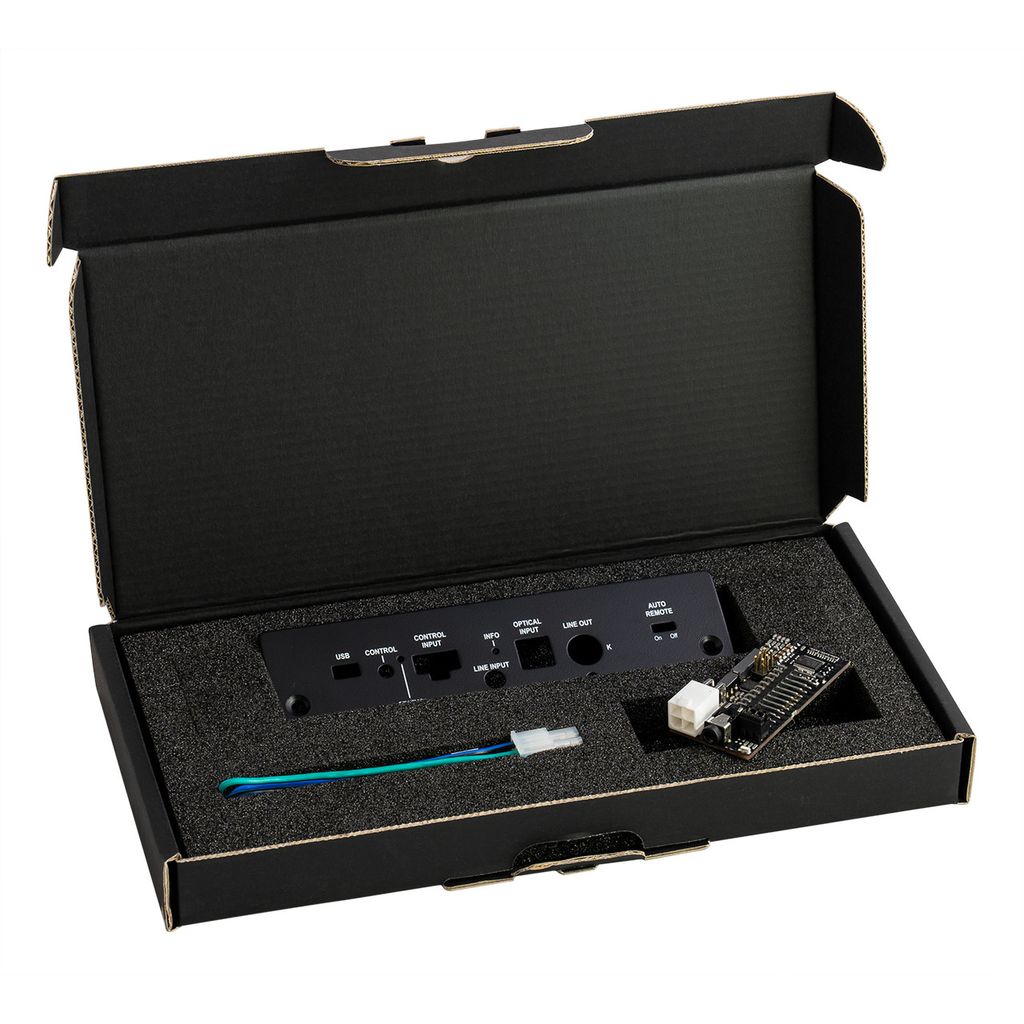

provide HELIX DSP devices with a lowlevel signal upgrade OEM premium sound systems which require additional highlevel inputs connect additional analog signal sources such as a TV or smartphone Of course, the highlevel input provides our proprietary ADEP.3-circuit, the Auto Remote function as well as an adjustable input sensitivity from 1.5 to 30 Volts. Just as the highlevel input the 3.5 mm lowlevel stereo input offers an adjustable input sensitivity. The adjustment range is from 0.5 to 8 Volts. The module will be delivered with a device-specific side panel.

Features Extends the DSP device by two additional analog input channels Highlevel input with ADEP.3 circuit, Auto Remote switch and an adjustable input voltage from 1.5 to 30 Volts Lowlevel stereo line input via 3.5 mm jack with an adjustable input voltage range from 0.5 to 8 Volts Inputs can be freely configured via the DSP PC-Tool as additional Main Inputs or as an AUX source Device-specific side panel included in delivery
