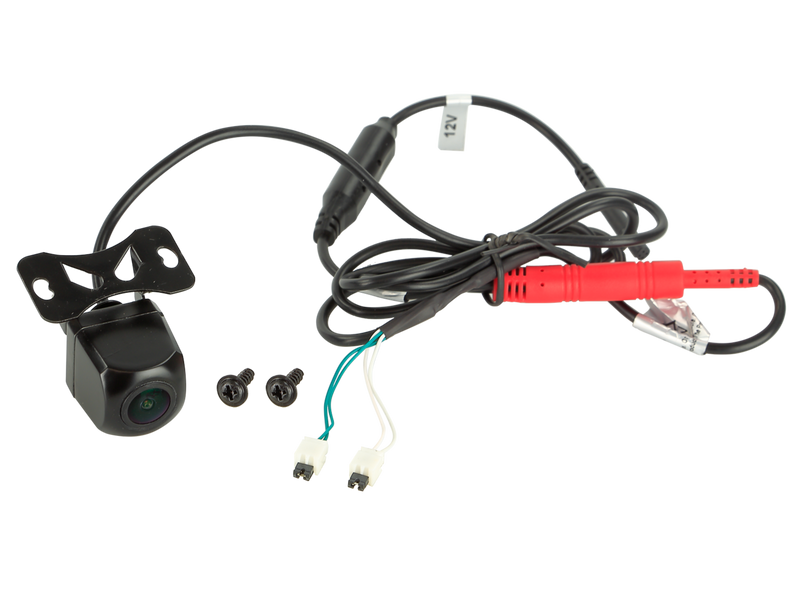

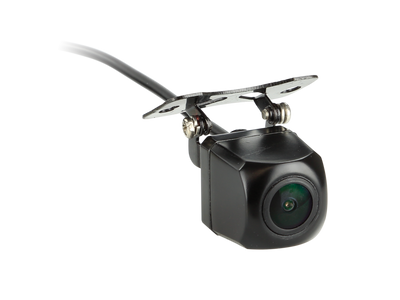

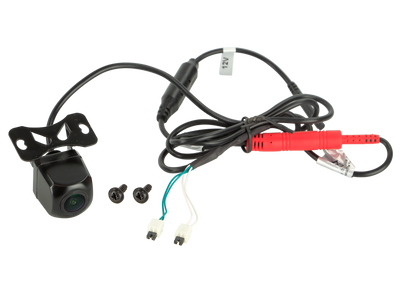

Beskrivning av ACV 771000-6700 Universal Reversing Camera
Rear view camera universal
Design: angular Mounting type: Substructure / Extension
With orientation lines / mirroring function
Technical details: acv cameras are suitable for continuous operation
Before installation, check viewing angle and camera orientation at the installation site with a test monitor
Camera operating voltage: +3V Camera Supply Voltage: +12V/+24V
Connection without voltage converter +3V in the scope of delivery damages the camera
Connection: red: +12V / +24V switched load-stable fused black: body mass direct/GND
RCA(m) yellow: Video
Jumper: green: enable/disable orientation lines white: Enable/disable mirroring function
Camera features:

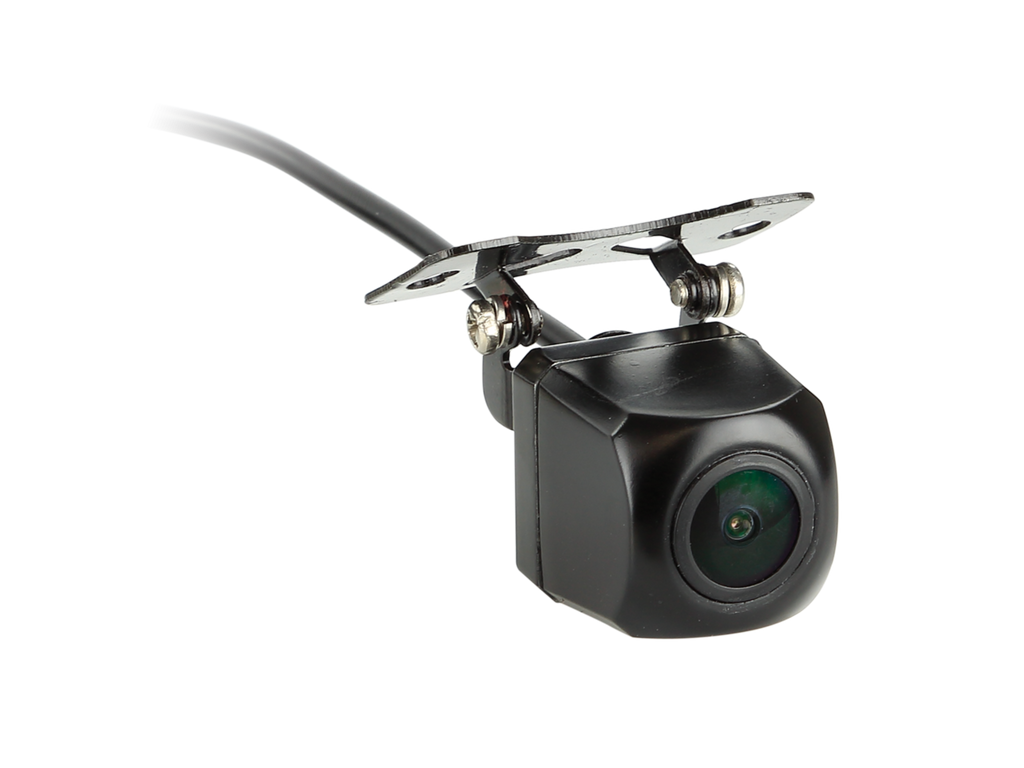

Construction: Plastic / Metal Colour: black Extras: Orientation lines / mirroring function via jumper Sensor Type: 1/3″ CMOS Image System: NTSC Color Effective Pixels: 976 x 592 Lens: 1.9mm / F 2.0 Lux: 0.3 Resolution: 700 TV lines Lens angle: diagonal 170° + 5° Viewing angle: horizontal 115° vertical 80° + 5° Dust and water resistant: IP68 Connection: 4 pin acv system connector (m) Ø5.2mm Operating voltage: +3V DC voltage Supply voltage: +12V / +24V DC voltage with voltage converter Current Consumption: 200mA Operating Temperature Range: -30°C - 75°C Storage temperature: -40°C - 85°C Dimensions: L / W / H - 28.3 mm / 23.4 mm / 23.4 mm

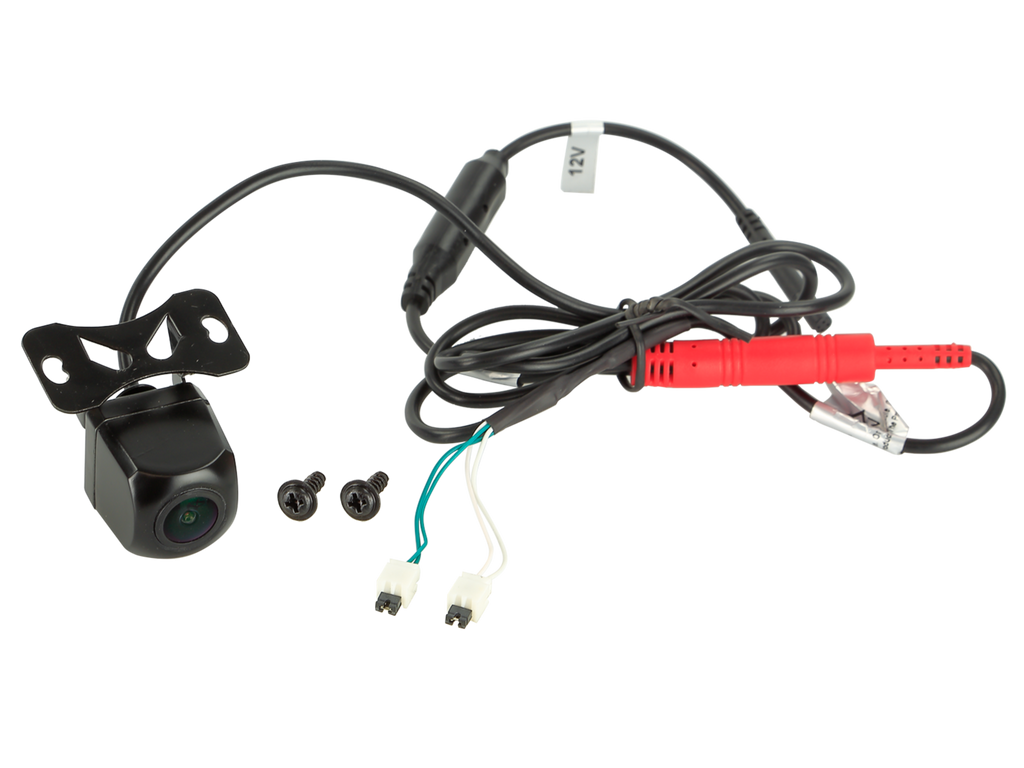

Connection cable to the camera 1m +/-: 4 pin acv system connector (m) Ø5.2mm 2 jumpers
Voltage converter +3V: 4 pin acv system plug(f) Ø10mm / 4 pin acv system plug(m) Ø5.2mm
Extension 6.5m +/-: 4 pin acv system plug(f) Ø10mm / 4 pin acv system plug(m) Ø5.2mm Power line red 3m +/- wired through: connection to camera / connection to reversing light to monitor Ground cable/GND black 3m +/- wired through: Connection body mass/GND to camera / Connection body mass/GND directly to the monitor
Connection cable 20cm +/-: 4 pin acv system plug(f) Ø10mm red: supply voltage black: Ground/GND RCA(m) yellow: Video
Installation accessories:
Rear View Camera Plastic Wedge 5° Angle for 771000-6000 Item: 771000-6910
Camera connection to interfaces: Normally Open Relay Electronic 2V-12V/1.5A max Article: 40-AD-REMOTE Camera connection to reversing light: Reversing Camera Voltage Stabilizer Reversing Signal Item: 771000-6100
Optional accessories:
Camera Cable Extension for ACV Camera 5m Item: 771000-6305 Camera Cable Extension for ACV Camera 10m Item: 771000-6310 Camera Cable Extension for ACV Camera 15m Item: 771000-6315
