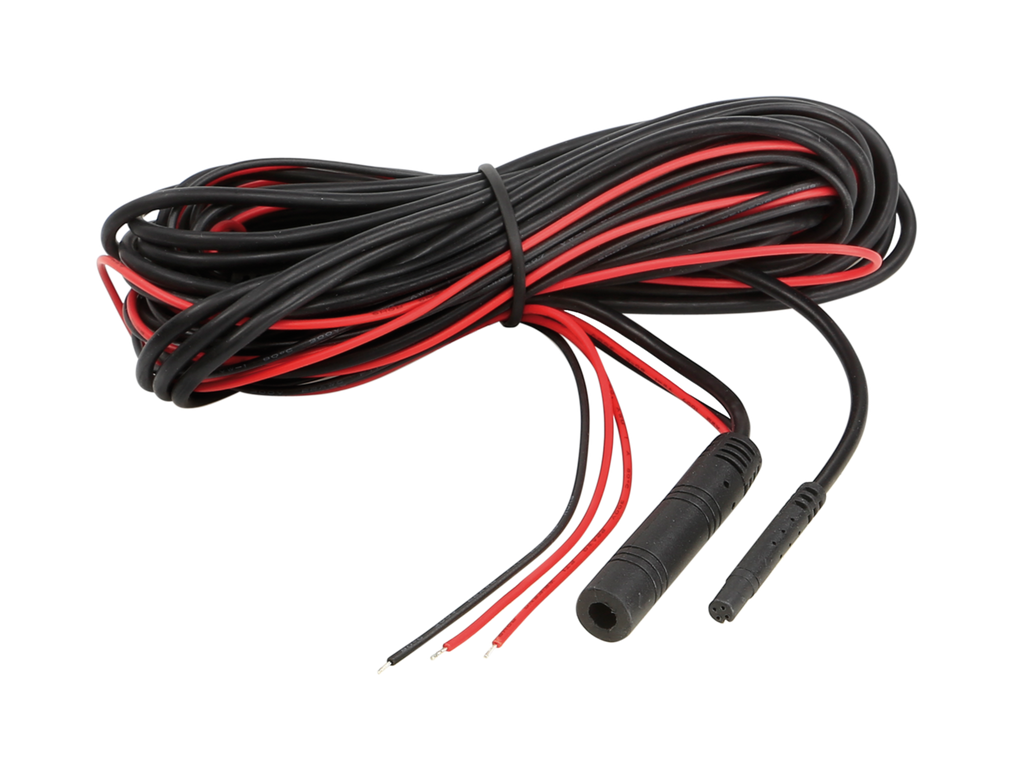

ACV 771000-6305 Camera cable extension for acv camera 5m

Camera Cable Extension

Extension cable for all acv cameras with one camera lens.Cable not suitable for cameras with 2 separate lenses.

For the following application:

System extension for acv camera program

Technical details: 4 pin acv system connector(f) / 4 pin acv system connector(m)

Power line red 3m +/- wired through: Connection camera / connection reversing light to the monitor Ground cable black 3m +/-: Connection body mass/GND to camera

Dimensions:

ACV System Plug(f): Ø10mm ACV System Connector (m): Ø5.2mm

Length: 5m +/-
