ACV 621145-07-1 2-DIN Kit Chrysler/Dodge/Jeep/Lancia SWC/Amp black

Radio cover 2-DIN and radio connection kit Chrysler / Dodge / Jeep / Lancia / Mitsubishi / VW

Many car manufacturers install their own vehicle-specific radios that are visually adapted to the center console.

Installation kits contain all components for replacing an OEM device.

Depending on the vehicle′s equipment, all adapters and interfaces required to operate the retrofit device and restore vehicle functions are included in the scope of delivery.

Please note the installation recommendations for the individual components.

In some cases, not all vehicle functions are supported. For example, Trailer Assist, E Call or other driving assistance systems.

Before installation, check the vehicle menu for various settings.

Check the function of the settings before final assembly.

Make sure that the original factory radios and plugs of the adapters shown by us match the equipment of the vehicle.

Compatibility: Chrysler Chrysler 200 2011 - 2014 Chrysler 300C (LX) 11/2007 - 12/2010 Chrysler Aspen 2008 - 2009 Chrysler Sebring (RJ) 05/2007 - 08/2010 Chrysler Town&Country 2008 - 2016

Dodge Dodge Avenger 2008 - 2014 Dodge Caliber (PK) 10/2008 - 12/2010 Dodge Challenger 2008 - 2014 Dodge Charger 2009 - 2010 Dodge Dakota 2008 - 2011 Dodge Durango 2008 - 2009 Dodge Grand Caravan 2008 - 2017 Dodge Journey (JC) 06/2008 - 12/2010*** Dodge Magnum 2008 - 2009 Dodge Nitro 2007 - 2011 Dodge RAM 1500 2009 - 2011 Dodge RAM 2500 2010 - 2012 Dodge RAM 3500 2010 - 2012 Dodge RAM Chassis CAB 2011 - 2012 Dodge RAM C/V Tradesman 2012 - 2015

Jeep Jeep Commander (WH) 2008 - 2010 Jeep Compass (PK) 2009 - 06/2010 Jeep Compass (PK) 05/2011 - 12/2016 Jeep Grand Cherokee (WH) 10/2007 - 12/2010 Jeep Patriot (PK) 2009 - 2017 Jeep Liberty 2008 - 2012 Jeep Wrangler (JK) 04/2007 - 02/2011*** Jeep Wrangler (JK) 02/2011 - 07/2018***

Lancia Lancia Voyager (RT) 11/2011 - 08/2015

Mitsubishi Mitsubishi Raider 2008 - 2009

VW VW Routan 2009 - 2015

Farbe: schwarz

Technical details: CAN Bus

Connector: 22 pin Chrysler connector // 24 pin Chrysler connector Connection: OEM steering wheel controls 3.5mm jack / loose cable Connection: Fakra(m) DIN(m) Connection: USA1 DIN(m)

blue/white: +12V ampremote

Vehicles with CAN Bus Vehicles with/without OEM sound system

Vehicles without +12V switched ignition Terminal 15 Vehicles without Infinity OEM sound system*/** Vehicles without CAN Bus Switched Ignition Terminal 15** Vehicles without blind spot equipment

Driver assistance system blind spot indicator in the exterior mirrors not supported PDC not supported OEM Sound System Fader Not Supported

Audio playback Check phone/navigation replace front/rear speaker output by plugging it in if necessary

Dip switch settings for the retrofit device manufacturer (see BDA)

Functions and signals: Re-import vehicles or vehicles with different software may be incompatible in functions.

red: +12V ignition terminal 15 orange: +12V lighting terminal 58 purple/white: +12V reversing signal pink: Speed signal not supported green: ground GND handbrake signal

Power handling outputs: 250 mA max.

Current requirement greater than 250 mA: 1 relay coil resistance 75 ohm min. 2 relays coil resistance 150 ohm min.

steering wheel controls

OEM sound system fader function not supported

*Vehicles 2002 - 2009 analog with Infinity OEM sound system not supported *Rewire Infinity OEM Amplifier Bypass Speaker **steering wheel controls LFB various US vehicles/Opel GT analog/CAN bus article: 42-uni-usa **ISO Adapter Cable Chrysler/Dodge/Jeep 22Pin Item: 1031-02 Adjust the radio slot manually with workshop equipment

Scope of delivery:

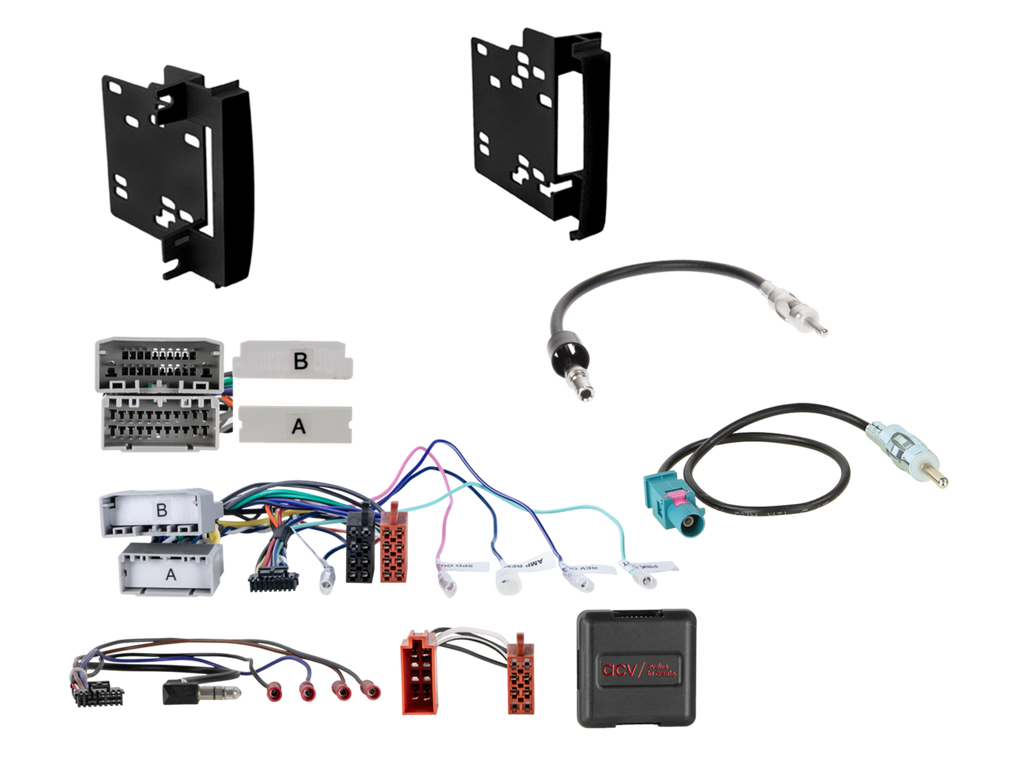

2-DIN radio cover Chrysler/Dodge/Jeep/VW black loose Article: 381145-07-0 LFB Chrysler/Dodge/Jeep/Lancia/Mitsubishi/VW loose Item: 42xch00c-0 Antenna adapter USA1 DIN(m) US vehicles loose Article: 1531-01-0 Antenna adapter Fakra(m) DIN(m) passive loose Article: 1524-01-0
