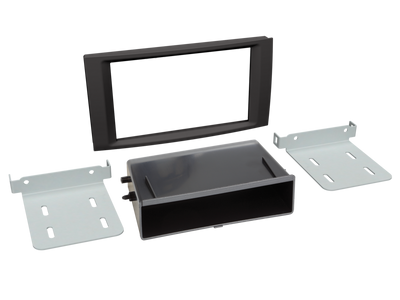

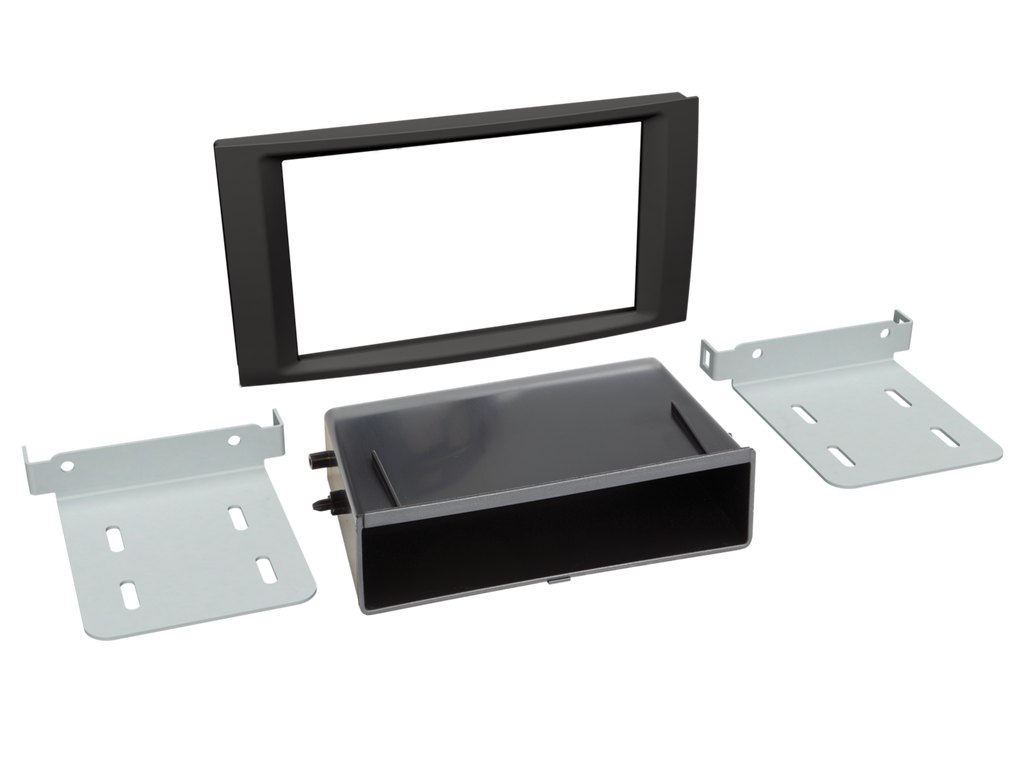

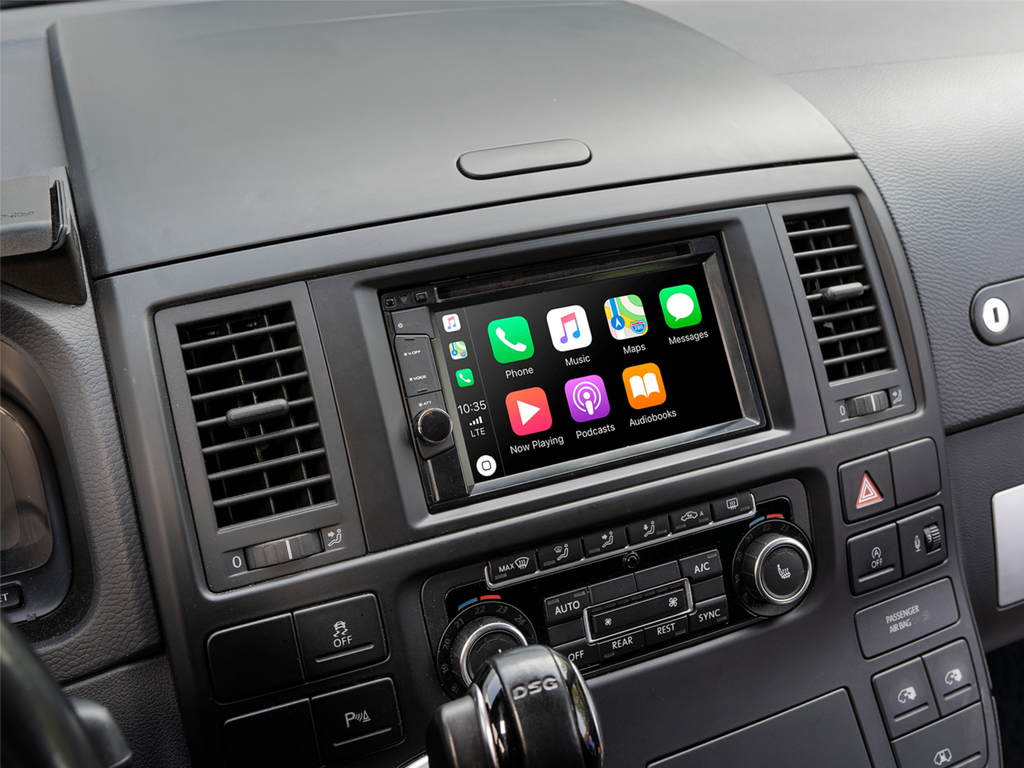

ACV 611320-27-2 2-DIN Kit with pocket VW T5 2003-2015/Touareg 2003-2010 SWC

Radio cover 2-DIN with compartment and radio connection kit steering wheel controls VW

acv premium quality

Many car manufacturers install their own vehicle-specific radios that are visually adapted to the center console.

Installation kits contain all components for replacing an OEM device.

Depending on the vehicle′s equipment, all adapters and interfaces required to operate the retrofit device and restore vehicle functions are included in the scope of delivery.

Please note the installation recommendations for the individual components.

Steering wheel remote radio connection kits provide all the necessary analog signals for the operation of an aftermarket radio.

No vehicle functions or settings are supported.

Before installation, check the OEM device and the vehicle menu for various settings.

Depending on the vehicle equipment as well as the range of functions and software of the retrofit device, individual operating functions can be omitted or replaced by other functions.

Compare the plugs of the adapter shown with those in your vehicle and make sure that they fit visually and technically.

Please also check whether one of the specified original factory radios was installed in your vehicle.

Before final assembly, check vehicle functions, vehicle settings and steering wheel controls for function.

Compatibility: VW Caravelle (7H) 10/2004 - 09/2009** VW Caravelle (7H) 09/2009 - 05/2015* VW Multivan (7H) 02/2003 -09/2009 VW Multivan (7H) 09/2009 - 05/2015* VW T5 Transporter (7H) 08/2003 - 09/2009** VW T5 Transporter (7H) 09/2009 - 05/2015*/** VW Touareg I (7L) 06/2003 - 11/2006*** VW Touareg I (7L) 11/2006 - 02/2010***

*Vehicles without Golf V/IV Style OEM device **Vehicles without radio preparation **Vehicles without 1-DIN OEM device **Vehicles without 2-DIN Delta 6 OEM device **Vehicles without 2-DIN MCD / MFD1 OEM Navigation Machine/remove aluminium crossbar of the OEM instrument panel with workshop equipment / new screw points

Colour: black

Built-in cut-out radio display 2-DIN: 173 mm x 98 mm

Technical details: CAN Bus

Connector: 40 Pin Quadlock VW ISO Connection: Fakra(m)(Set) DIN(m) Connection OEM steering wheel controls 42arc100

Check dip switch position

Vehicles without OEM sound system

Vehicles with OEM sound system included: Active System Adapter VW T5/Touareg Quadlock MQS Insert Article: 13-1424-26

Functions and signals: Re-import vehicles or vehicles with different software may be incompatible in functions.

pink: +12V ignition terminal 15 1.5A max. orange: +12V lighting terminal 58 0.1A max. white: +12V reverse signal 1.5A max. yellow/green yellow/red: speed signal

steering wheel controls

CAN Bus Activation OEM Sound System

Connection cable for the following radio manufacturers:

Alpine 3.5mm jack connection Blaupunkt 2010 3.5mm jack connection (Sony/Pioneer) Blaupunkt 2010 Key1 / Key2 / (GND) Connector (China HU) China HU Key1/Key2/(GND) Connector Clarion 3.5mm jack connection Digital Dynamics Single Cable Connector ESX Key1 / Key2 Connector (China HU) JVC 3.5mm jack connection JVC Single Cable Connector (Kenwood) Kenwood Single Cable Connector Kenwood 2017 3.5mm jack connection (Pioneer/Sony) Kenwood 2020 Key1 / Key2 / GND Connector (China HU) Pioneer 3.5mm jack connection Snooper Key1/Key2 Connector (China HU) Sony 3.5mm jack XZent Single Cable Connector Zenec single-cable connection

DIP Switch Adjustment 42cx401:

Alpine OFF/OFF/OFF Blaupunkt 2010 OFF/ON/OFF (OFF/ON/ON) China HU OFF/ON/OFF Clarion ON/ON/OFF Digital Dynamics OFF/OFF/ON ESX OFF/ON//OFF JVC ON/OFF/ON (ON/ON/ON) (Single Cable Connection) JVC ON/OFF/ON (ON/ON/ON) (jack connection) Kenwood ON/ON/ON (single-cable connection) Kenwood 2017 OFF/ON/OFF (OFF/ON/ON) (jack connection) Kenwood 2020 OFF/ON/OFF (OFF/ON/ON) (Key1/Key2/GND) Pioneer OFF/ON/ON Snooper OFF/ON/OFF Sony OFF/ON/ON XZent OFF/OFF/ON Zenec OFF/OFF/ON

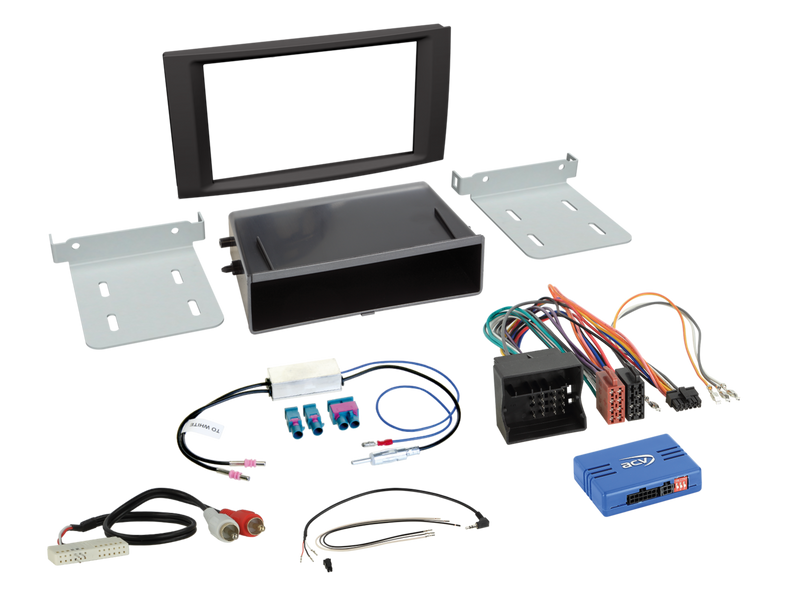

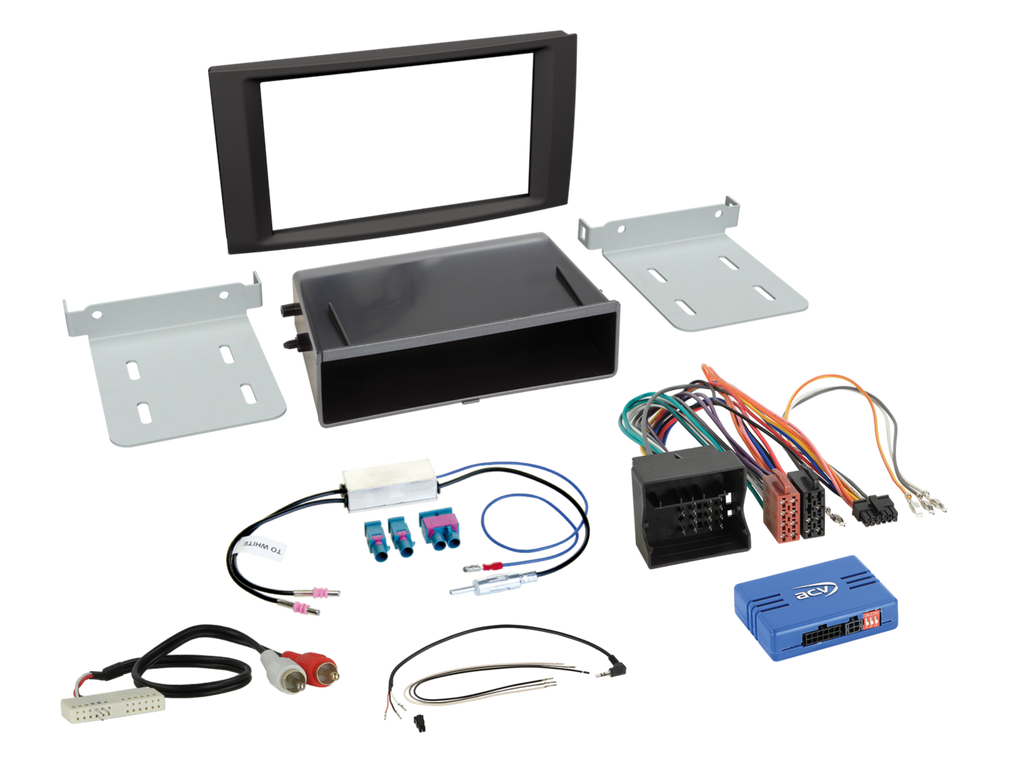

Scope of delivery:

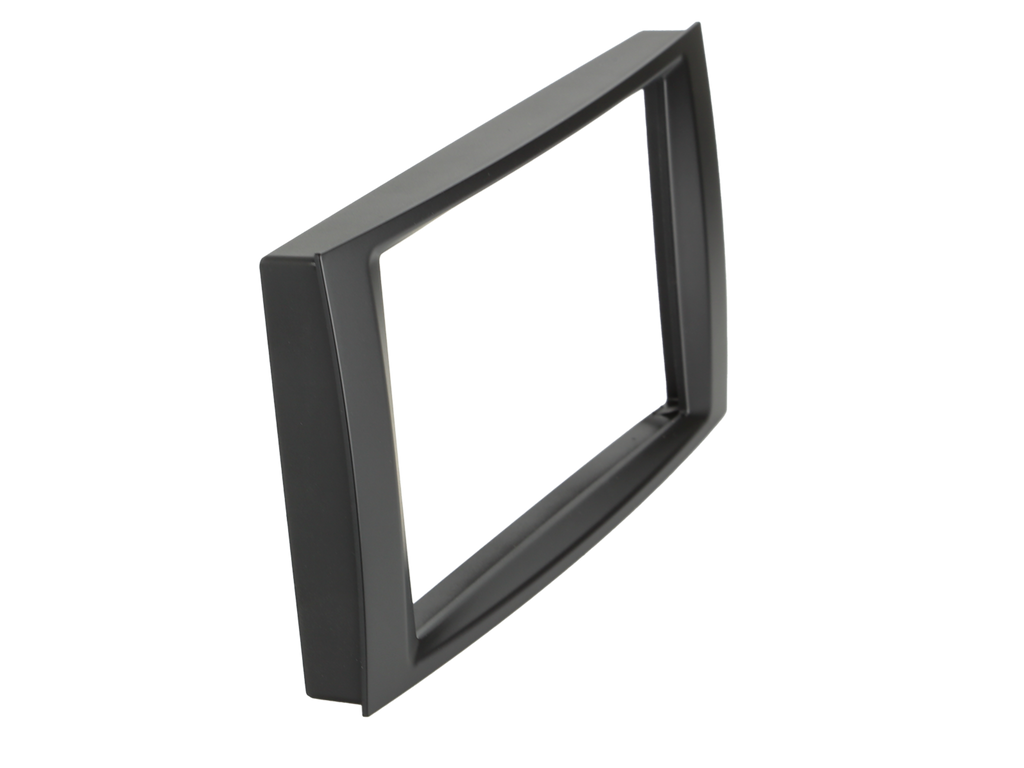

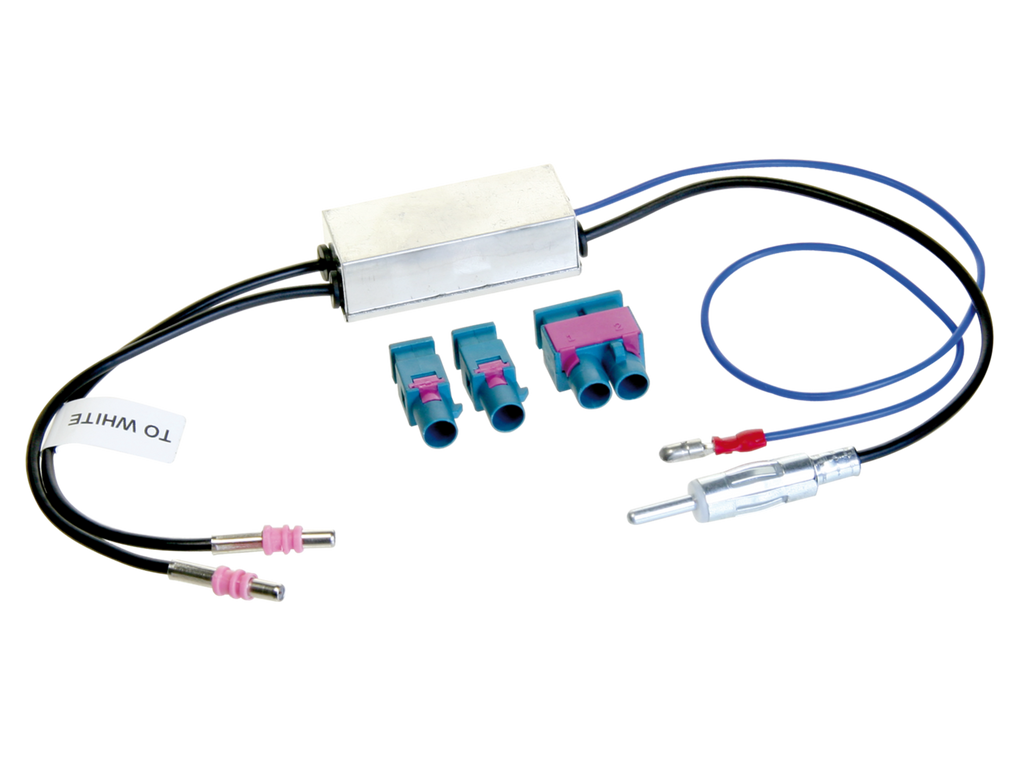

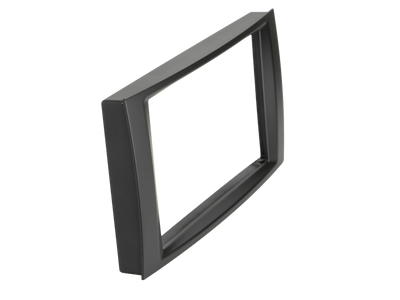

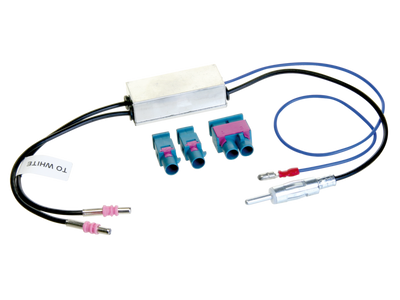

2-DIN radio cover with compartment VW T5/Touareg article: 281320-27-2 LFB Audi/Seat/Skoda/VW various vehicles 40Pin Quadlock Item: 42a-1324-001 LFB 42a/CX401 Cable Multilead various devices Article: 42arc100 Active System Adapter VW T5/Touareg Quadlock MQS Insert Article: 13-1424-26 Antenna Adapter Fakra(m)(Set)DIN(m) 12V Phantom Article: 1524-70

Optional:

Storage compartment INBAY® for 2-DIN panels screwable 5W: 241000-10-1
