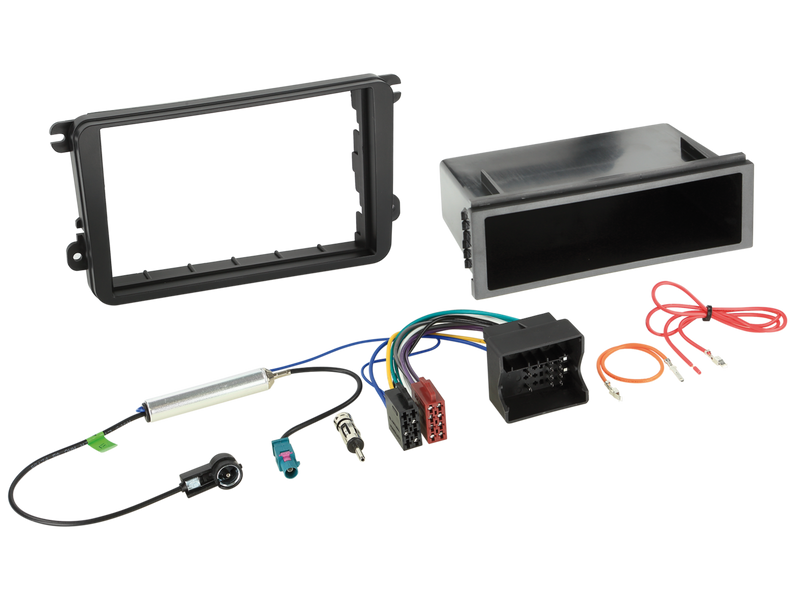

ACV 611320-15-01 1-DIN / 2-DIN Kit with pocket Seat/Skoda/VW passive/antenna

Radio cover 1-DIN / 2-DIN with compartment and radio connection kit passive Seat / Skoda / VW

Many car manufacturers install their own vehicle-specific radios that are visually adapted to the center console.

Installation kits contain all components for replacing an OEM device.

Please note the installation recommendations for the individual components.

Passive radio connection kits may require additional assembly steps and do not support vehicle functions or settings.

Before installation, check the OEM device and the vehicle menu for various settings.

Compare the plugs of the adapter shown with those in your vehicle and make sure that they fit visually and technically.

Please also check whether one of the specified original factory radios was installed in your vehicle.

Before final assembly, check vehicle functions and vehicle settings for function.

Compatibility: Seat Alhambra: 2010–2015 Seat Leon: 2005–2012 Seat Toledo: 2013–2015 Skoda Fabia: 2007–2014 Skoda Octavia: 2004–2013 Škoda Rapid: 2012–2015 Skoda Roomster: 2006–2015 Škoda Superb: 2008–2015 Volkswagen Amarok: 2010–2016 Volkswagen Beetle: 2011–2016

Technical details: passive

Connector: 40 Pin Quadlock VW ISO Connection: OEM Antenna Fakra(m) DIN(m) / ISO(m)

Radio panel with 2-DIN cut-out 2-DIN installation kit: 2-DIN radio aperture ISO universal/113mm x 183mm article: 381320-00

Connection: red: +12V ignition current terminal 15 fuse box fused orange: +12V light / dimmer terminal 58 fuse box fused

Vehicles Seat Leon / Toledo: with Golf V/IV Style OEM device with CD slot in the device without OEM device with CD slot in the device cover

Vehicles Skoda: Skoda OEM radio cover required*/**/***/****

Vehicles Skoda: with Bolero/Stream OEM device with Amundson / Columbus OEM Navigation without Technisat OEM device

Vehicles VW: Vehicles with RCD200 / RCD210 / RCD300 / RCD310 / RCD500 / RCD510 OEM device Vehicles with RNS315 / RNS510 OEM Navigation Vehicles without RCD320 OEM device with ISO connectors Vehicles without OEM sound system

Adjustment work of the aperture with workshop equipment necessary if necessary

Suitable for the following vehicles:

Seat Seat Alhambra (7N) 10/2010 - 04/2015 Seat Leon (1P) 04/2009 - 11/2012 Seat Toledo (NH) 03/2013 - 05/2015

Skoda Skoda Fabia (5Y) 03/2007 - 04/2010 Skoda Fabia (5J) 06/2010 - 06/2014 Skoda Octavia (1Z) 06/2004 - 05/2009* Skoda Octavia (1Z) 01/2009 - 03/2013** Skoda Rapid (NH) 10/2012 - 04/2015*** Skoda Roomster (5Y) 09/2006 - 04/2010 Skoda Roomster (5J) 06/2010 - 02/2015 Skoda Praktik (5Y) 09/2006 - 04/2010 Skoda Praktik (5Y) 06/2010 - 02/2015 Skoda Superb (3T) 07/2008 - 05/2013**** Skoda Superb (3T) 06/2013 - 05/2015**** Skoda Yeti (5L) 08/2009 - 10/2013*****

VW VW Amarok (2H) 07/2010 - 08/2016 VW Amarok (2H) 07/2010 - 08/2016 VW Beetle (16) 11/2011 - 06/2016 VW Caddy III (2K) 10/2003 - 08/2010 VW Caddy III (2K) 09/2010 - 04/2015 VW Caravelle (7H) 09/2009 - 05/2015 VW CC (3C/35) 06/2008 - 11/2011 VW CC (3C/35) 02/2012 - 08/2016 VW EOS (1F) 05/2006 - 10/2010 VW EOS (1F) 10/2010 - 04/2015 VW Golf V (1K) 11/2003 - 09/2008 VW Golf V (1KM) 06/2007 - 10/2009 VW Golf V Plus (1KP) 01/2005 - 02/2009 VW Golf VI (1K) 11/2008 - 09/2012 VW Golf VI (1KM) 11/2009 - 04/2013 VW Golf VI Plus (1KP) 03/2009 - 01/2014 VW Jetta V (1KM) 09/2005 - 10/2010 VW Jetta IV (162) 01/2011 - 08/2014 VW Multivan (7H) 09/2009 - 05/2015 VW Passat B6 (3C2) 11/2005 - 07/2010 VW Passat B6 (3C5) 08/2005 - 07/2010 VW Passat B7 (3C/362) 11/2010 - 10/2014 VW Polo V (6R) 06/2009 - 01/2014 VW Scirocco III (13) 08/2008 - 04/2014 VW Sharan II (7N) 08/2010 - 04/2015 VW T5 Transporter (7H) 09/2009 - 05/2015 VW Tiguan I (5N) 10/2007 - 02/2011 VW Tiguan I (5N) 06/2011 - 04/2016 VW Touran I (1T) 01/2003 - 09/2006 VW Touran I (1T) 11/2006- 04/2010 VW Touran I (1T) 08/2010 - 04/2015

Colour: black

*Vehicles with Amundsen / Columbus / Nexus OEM Navigation **Vehicles with Bolero / Swing OEM device Skoda OEM navigation cover Item number: depending on equipment Skoda OEM Cover Skoda Item number: 5JA858 415 9B9 Vehicles with Amundsen / Columbus OEM Navigation Vehicles with Bolero / Swing OEM Device Skoda OEM Navigation Cover Item No.: 3TO8580691QB Skoda OEM Cover Skoda Item number: 5L0858069L1 QB

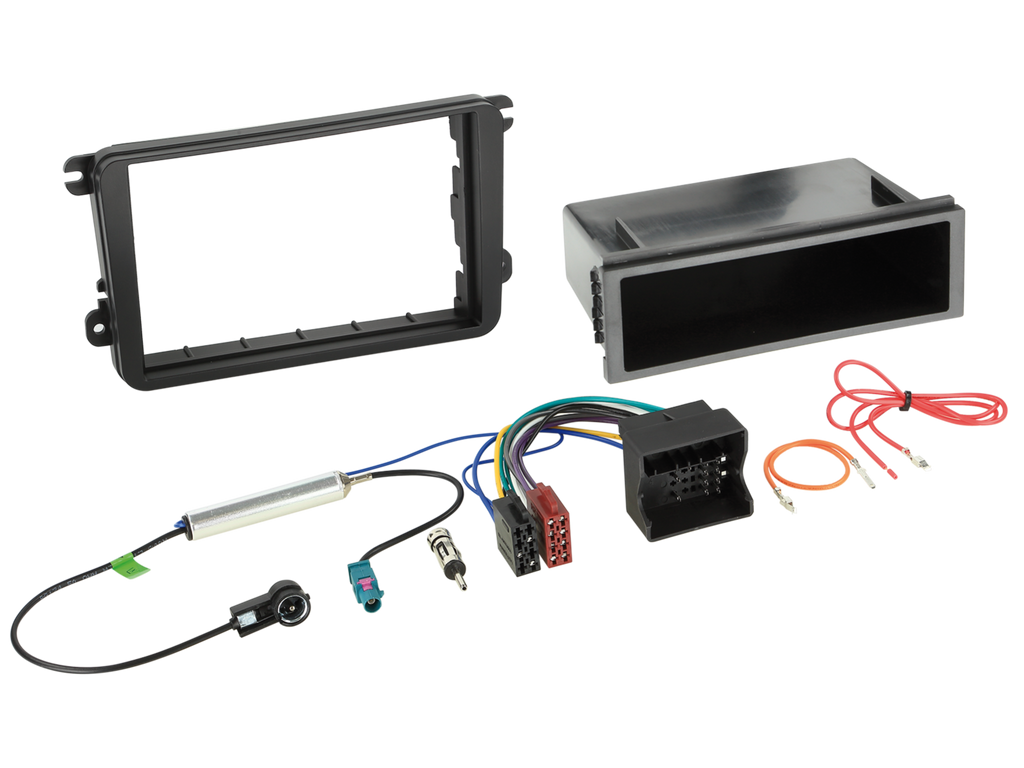

Scope of delivery:

2-DIN radio cover Seat/Skoda/VW black Item: 281320-15 Storage compartment for 2-DIN radio covers/1-DIN radio covers article: 271000-05 ISO Adapter Cable Audi/Seat/Skoda/VW Quadlock/FakraISO Article: 1324-45 Antenna adapter ISO(f)DIN(m) article: 1500-00
