ACV 43XFT03 i-dapterCitroen/Fiat/Opel/Peugeot/Toyota Multilead

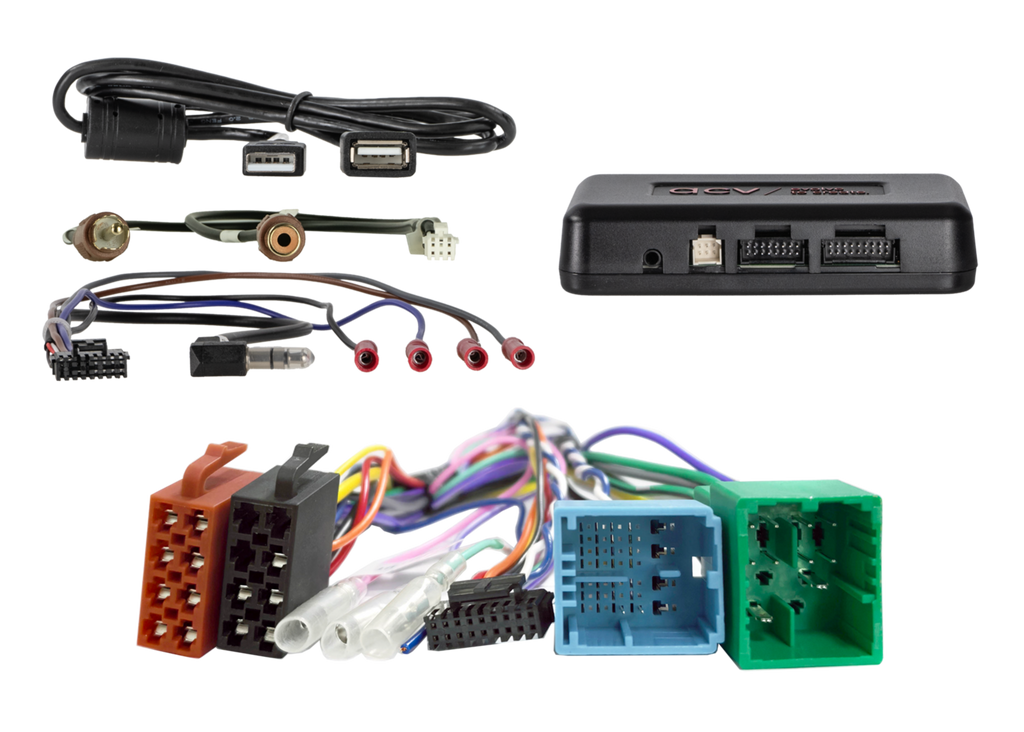

i-dapter Citroen / Fiat / Opel / Peugeot / Toyota

The Infodapter will retain several vehicle display functions when the OEM radio or navigation system is replaced. Vehicle specific settings are accessible and will be displayed on the aftermarket head unit.

SWC buttons are essential to get access to the Infodapter configuration menu.

Also check our listed OEM head units and compare the pictured harness connectors with the connectors in your car and make sure that they fit optically and technically.

Note that in some cases not all functions are supported. For example Trailer Assist, E Call or other driver assistance and comfort systems.

Check the vehicle menu for various settings before installation.

Check the function of the settings and the vehicle system before final installation.

Please contact our support team for help. 02431-9645-96 support@acvgmbh.de

Note:

vehicles with SWC

CAN BUS

connector: 12 Pin green / 32 Pin blue Fiat connector: OEM SWC 3,5mm Jack / loose wire

vehicles with 5″ OEM HU vehicles with 7″ OEM HU vehicles with 10″ OEM Sat Nav

activate and configure the rear view camera input in the retrofit HU

connection i-dapter: purple/white: +12V reverse gear signal RCA(m) ochre: rear view camera input retrofit HU

visualisation i-adapter settings retrofit HU rear view camera input

camera image or i-dapter settings and visualisation not available: connect additional GND signal to the RCA outer conductor of the camera and HU connection

i-dapter settings: press and hold track up or down SWC buttom

depending on the vehicle equipment and software: not all vehicle settings are supported not all vehicle functions are supported not all vehicle information is visualised

+12V reverse gear signal not reliably supported

following settings supported:

Language / Distance Units / Clock / Temperature Units / Consumption Units / Speed Units / Follow Me / Auto Door Unlock on Exit / Flash Lights with lock / Courtesy Lights / Auto Door Locks / Daytime Running Lights / Cornering Lights / Ambient Lighting / Greeting Lights / Park Sens / Volume Level / High Beam Control / Park Sense / Rain Sensor / Lane Sense Warning / Lane Sense Strength / Tyre Pressure Units / Traffic Sign Recognition / Traffic Sign Warning / Vehicle Off Options / Blindspot Assist / Headlight Sensor Sensitivity / Forward Collision Warning / Forward Collision Sensitivity

+12V reverse gear signal not reliably supported

vehicles with OEM rear view camera: Rear view camera interface Citroen/Fiat/ Opel/OEM camera item: 771094-1031

DIP switch settings without the power connection reconnect the interface once the settings have been made

dip switch settings for the OEM device (look into the manual) dip switch settings for the retrofit device manufacturer (look into the manual)
