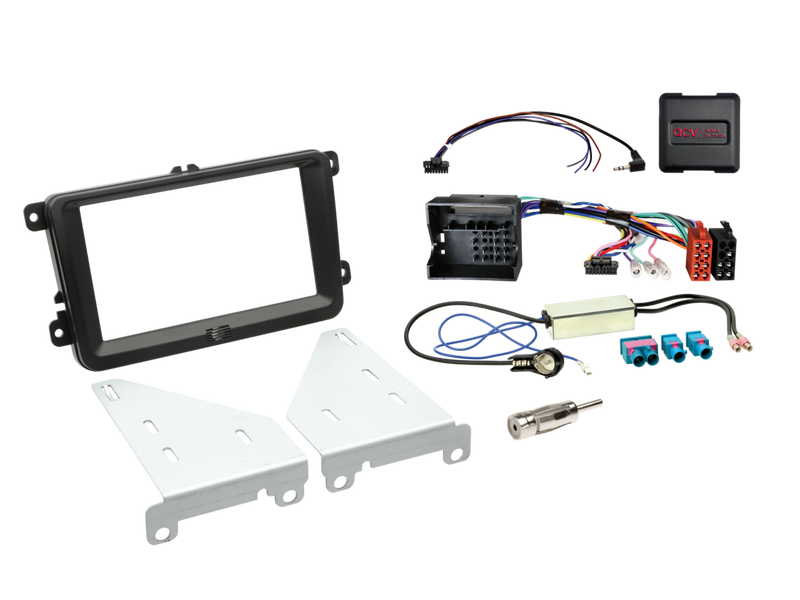

ACV 2-DIN Kit Seat/Skoda/VW vehicles SWC/antenna(Set) black

Radio cover 2-DIN and radio connection kit steering wheel controls Seat / Skoda / VW

acv premium quality

Many car manufacturers install their own vehicle-specific radios that are visually adapted to the center console.

Installation kits contain all components for replacing an OEM device.

Depending on the vehicle′s equipment, all adapters and interfaces required to operate the retrofit device and restore vehicle functions are included in the scope of delivery.

Please note the installation recommendations for the individual components.

Steering wheel remote radio connection kits provide all the necessary analog signals for the operation of an aftermarket radio.

No vehicle functions or settings are supported.

Before installation, check the OEM device and the vehicle menu for various settings.

Depending on the vehicle equipment as well as the range of functions and software of the retrofit device, individual operating functions can be omitted or replaced by other functions.

Compare the plugs of the adapter shown with those in your vehicle and make sure that they fit visually and technically.

Please also check whether one of the specified original factory radios was installed in your vehicle.

Before final assembly, check vehicle functions, vehicle settings and steering wheel controls for function.

Compatibility: Seat Alhambra: 2010–2015 Seat Leon: 2009–2012 Seat Toledo: 2013–2015 Skoda Fabia: 2007–2014 Skoda Octavia: 2004–2013 Škoda Rapid: 2012–2015 Skoda Roomster: 2006–2015 Škoda Superb: 2008–2015 Skoda Yeti: 2009–2013 Volkswagen Amarok: 2010–2016

Technical details: CAN Bus

Connection: 40 pin Quadlock VW Connection: OEM steering wheel controls 3.5mm jack / loose cable Connection: OEM Antenna Fakra(m)(Set) DIN(m) / ISO(m)

Vehicles without OEM sound system

Vehicles Seat Leon / Toledo: Vehicles with Golf V/IV Style OEM device with CD slot in the device Vehicles without OEM device with CD slot in the device cover

Vehicles Skoda: Skoda OEM radio cover required*/**/***/****

Vehicles Skoda: Vehicles with Bolero/Stream OEM device Vehicles with Amundson / Columbus OEM Navigation Vehicles without Technisat OEM device

Vehicles VW: Vehicles with RCD200 / RCD210 / RCD300 / RCD310 / RCD500 / RCD510 OEM device Vehicles with RNS315 / RNS510 OEM Navigation Vehicles without RCD320 OEM device with ISO connectors

Dip switch settings for the retrofit device manufacturer (see BDA)

Suitable for the following vehicles:

Seat Seat Alhambra (7N) 10/2010 - 04/2015 Seat Leon (1P) 04/2009 - 11/2012 Seat Toledo (NH) 03/2013 - 05/2015

Skoda Skoda Fabia (5Y) 03/2007 - 04/2010 Skoda Fabia (5J) 06/2010 - 06/2014 Skoda Octavia (1Z) 06/2004 - 05/2009* Skoda Octavia (1Z) 01/2009 - 03/2013** Skoda Rapid (NH) 10/2012 - 04/2015*** Skoda Roomster (5Y) 09/2006 - 04/2010 Skoda Roomster (5J) 06/2010 - 02/2015 Skoda Praktik (5Y) 09/2006 - 04/2010 Skoda Praktik (5Y) 06/2010 - 02/2015 Skoda Superb (3T) 07/2008 - 05/2013**** Skoda Superb (3T) 06/2013 - 05/2015**** Skoda Yeti (5L) 08/2009 - 10/2013*****

VW VW Amarok (2H) 07/2010 - 08/2016 VW Beetle (16) 11/2011 - 06/2016 VW Caddy III (2K) 10/2003 - 08/2010 VW Caddy III (2K) 09/2010 - 04/2015 VW CC (3C/35) 06/2008 - 11/2011 VW CC (3C/35) 02/2012 - 08/2016 VW EOS (1F) 05/2006 - 10/2010 VW EOS (1F) 10/2010 - 04/2015 VW Golf V (1K) 11/2003 - 09/2008 VW Golf V (1KM) 06/2007 - 10/2009 VW Golf V Plus (1KP) 01/2005 - 02/2009 VW Golf VI (1K) 11/2008 - 09/2012 VW Golf VI (1KM) 11/2009 - 04/2013 VW Golf VI Plus (1KP) 03/2009 - 01/2014 VW Jetta V (1KM) 09/2005 - 10/2010 VW Jetta IV (162) 01/2011 - 08/2014 VW Passat B6 (3C2) 11/2005 - 07/2010 VW Passat B6 (3C5) 08/2005 - 07/2010 VW Passat B7 (3C/362) 11/2010 - 10/2014 VW Polo V (6R) 06/2009 - 01/2014 VW Scirocco III (13) 08/2008 - 04/2014 VW Sharan II (7N) 08/2010 - 04/2015 VW Tiguan I (5N) 10/2007 - 02/2011 VW Tiguan I (5N) 06/2011 - 04/2016 VW Touran I (1T) 01/2003 - 09/2006 VW Touran I (1T) 11/2006- 04/2010 VW Touran I (1T) 08/2010 - 04/2015

Colour: black

Radio display cut-out: 172 mm x 98.5 mm

Functions and signals: Re-import vehicles or vehicles with different software may be incompatible in functions.

red: +12V ignition terminal 15 orange: +12V lighting terminal 58 purple/white: +12V reversing signal pink: speed signal green: ground GND handbrake signal

Power handling outputs: 250 mA max.

Current requirement greater than 250 mA: 1 relay coil resistance 75 ohm min. 2 Ralais Coil Impedance 150 Ohm min.

steering wheel controls

*Vehicles with Amundsen / Columbus / Nexus OEM Navigation **Vehicles with Bolero / Swing OEM device
