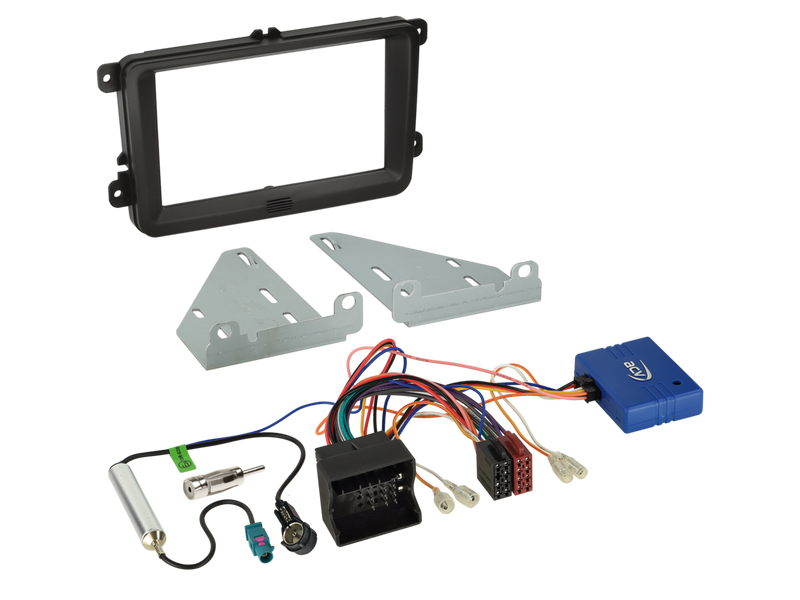

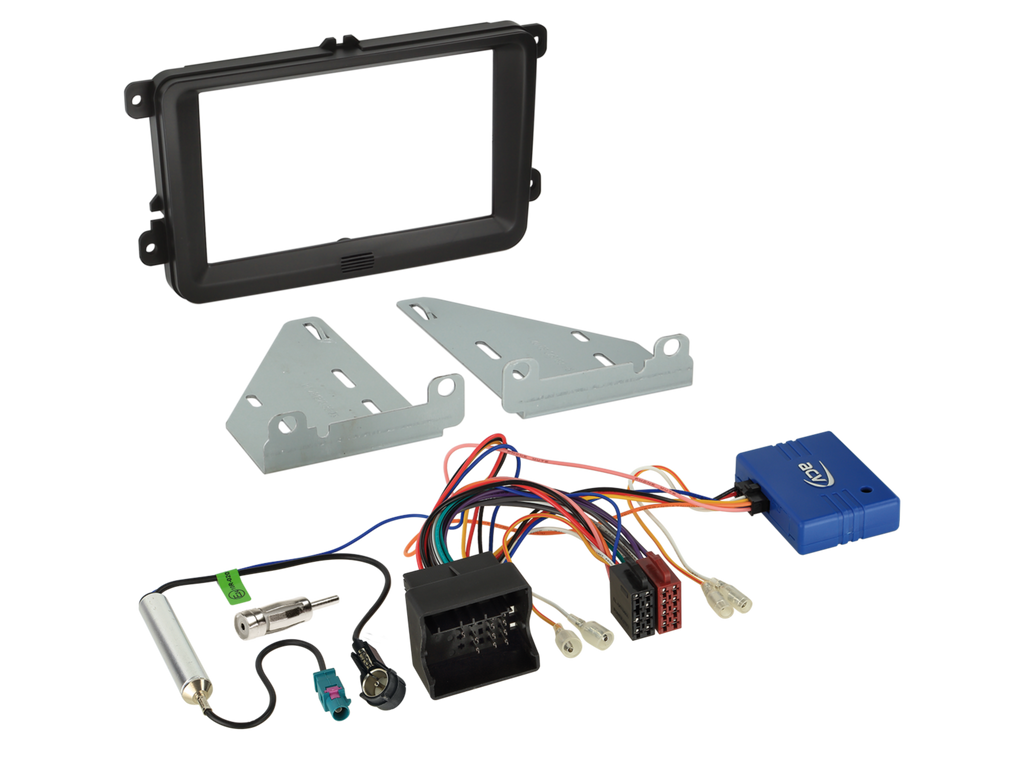

Beskrivning av ACV 2-DIN Kit Seat/Skoda/VW vehicles CAN Bus/antenna black
Radio cover 2-DIN and radio connection kit CAN Bus Seat / Skoda / VW
acv premium quality
Many car manufacturers install their own vehicle-specific radios that are visually adapted to the center console.
Installation kits contain all components for replacing an OEM device.
Depending on the vehicle′s equipment, all adapters and interfaces required to operate the retrofit device and restore vehicle functions are included in the scope of delivery.
Please note the installation recommendations for the individual components.
CAN Bus Radio Connection Kits provide all the analog signals required to operate a retrofit radio.
No vehicle functions or settings are supported.
Before installation, check the OEM device and the vehicle menu for various settings.
Compare the plugs of the adapter shown with those in your vehicle and make sure that they fit visually and technically.
Please also check whether one of the specified original factory radios was installed in your vehicle.
Before final assembly, check vehicle functions and vehicle settings for function.
Compatibility: Seat Alhambra: 2010–2015 Seat Leon: 2009–2012 Seat Toledo: 2013–2015 Skoda Fabia: 2007–2014 Skoda Octavia: 2004–2013 Škoda Rapid: 2012–2015 Skoda Roomster: 2006–2015 Škoda Superb: 2008–2015 Skoda Yeti: 2009–2013 Volkswagen Amarok: 2010–2016
Technical details: CAN Bus
Connection: 40 pin Quadlock VW Connection: OEM Antenna Fakra(m) DIN(m) / ISO(m)
Vehicles Seat Leon / Toledo: with Golf V/IV Style OEM device with CD slot in the device without OEM device with CD slot in the device cover
Vehicles Skoda: Skoda OEM radio cover required*/**/***/****
Vehicles Skoda: with Bolero/Stream OEM device with Amundson / Columbus OEM Navigation without Technisat OEM device
Vehicles VW: Vehicles with RCD200 / RCD210 / RCD300 / RCD310 / RCD500 / RCD510 OEM device Vehicles with RNS315 / RNS510 OEM Navigation Vehicles without RCD320 OEM device with ISO connectors
Vehicles VW Caravelle / Multivan / T5 Transporter with Golf V/VI Style Device Vehicles VW Caravelle / Multivan / T5 Transporter without rectangular OEM device
Vehicles VW Caravelle / Multivan / T5 Transporter with OEM sound system: Active System Adapter VW T5/Touareg Quadlock MQS Insert Article: 13-1424-26
Diagnostic LED: Blue Flashing CAN Bus Search blue constant CAN bus active red +12V ignition current active
Suitable for the following vehicles:
Seat Seat Alhambra (7N) 10/2010 - 04/2015 Seat Leon (1P) 04/2009 - 11/2012 Seat Toledo (NH) 03/2013 - 05/2015
Skoda Skoda Fabia (5Y) 03/2007 - 04/2010 Skoda Fabia (5J) 06/2010 - 06/2014 Skoda Octavia (1Z) 06/2004 - 05/2009* Skoda Octavia (1Z) 01/2009 - 03/2013** Skoda Rapid (NH) 10/2012 - 04/2015*** Skoda Roomster (5Y) 09/2006 - 04/2010 Skoda Roomster (5J) 06/2010 - 02/2015 Skoda Praktik (5Y) 09/2006 - 04/2010 Skoda Praktik (5Y) 06/2010 - 02/2015 Skoda Superb (3T) 07/2008 - 05/2013**** Skoda Superb (3T) 06/2013 - 05/2015**** Skoda Yeti (5L) 08/2009 - 10/2013*****
VW VW Amarok (2H) 07/2010 - 08/2016 VW Beetle (16) 11/2011 - 06/2016 VW Caddy III (2K) 10/2003 - 08/2010 VW Caddy III (2K) 09/2010 - 04/2015 VW Caravelle (7H) 09/2009 - 05/2015 VW CC (3C/35) 06/2008 - 11/2011 VW CC (3C/35) 02/2012 - 08/2016 VW EOS (1F) 05/2006 - 10/2010 VW EOS (1F) 10/2010 - 04/2015 VW Golf V (1K) 11/2003 - 09/2008 VW Golf V (1KM) 06/2007 - 10/2009 VW Golf V Plus (1KP) 01/2005 - 02/2009 VW Golf VI (1K) 11/2008 - 09/2012 VW Golf VI (1KM) 11/2009 - 04/2013 VW Golf VI Plus (1KP) 03/2009 - 01/2014 VW Jetta V (1KM) 09/2005 - 10/2010 VW Jetta IV (162) 01/2011 - 08/2014 VW Multivan (7H) 09/2009 - 05/2015 VW Passat B6 (3C2) 11/2005 - 07/2010 VW Passat B6 (3C5) 08/2005 - 07/2010 VW Passat B7 (3C/362) 11/2010 - 10/2014 VW Polo V (6R) 06/2009 - 01/2014 VW Scirocco III (13) 08/2008 - 04/2014 VW Sharan II (7N) 08/2010 - 04/2015 VW T5 Transporter (7H) 09/2009 - 05/2015 VW Tiguan I (5N) 10/2007 - 02/2011 VW Tiguan I (5N) 06/2011 - 04/2016 VW Touran I (1T) 01/2003 - 09/2006 VW Touran I (1T) 11/2006- 04/2010 VW Touran I (1T) 08/2010 - 04/2015
Colour: black
Radio display cut-out: 172 mm x 98.5 mm
Functions and signals: Re-import vehicles or vehicles with different software may be incompatible in functions.
pink: +12V ignition terminal 15 1.5A max. orange: +12V lighting terminal 58 0.1A max. white: +12V reversing signal 1.5A max. yellow/green yellow/red: speed signal
CAN Bus Activation OEM Sound System
*Vehicles with Amundsen / Columbus / Nexus OEM Navigation **Vehicles with Bolero / Swing OEM device
