ACV 2-DIN Kit Audi TT(8J) 09/2006-04/2014 SWC/antenna/Amp

Radio Cover 2-DIN Radio Connection Kit steering wheel controls Audi

acv quality

Many car manufacturers install their own vehicle-specific radios that are visually adapted to the center console.

Installation kits contain all components for replacing an OEM device.

Depending on the vehicle′s equipment, all adapters and interfaces required to operate the retrofit device and restore vehicle functions are included in the scope of delivery.

Please note the installation recommendations for the individual components.

In some cases, not all vehicle functions are supported. For example, Trailer Assist, E Call or other driving assistance systems.

Before installation, check the OEM device and the vehicle menu for various settings.

Depending on the vehicle equipment as well as the range of functions and software of the retrofit device, individual operating functions can be omitted or replaced by other functions.

Compare the plugs of the adapter shown with those in your vehicle and make sure that they fit visually and technically.

Please also check whether one of the specified original factory radios was installed in your vehicle.

Before final assembly, check vehicle functions, vehicle settings and steering wheel controls for function.

Compatibility: Audi TT (8J) 09/2006 - 04/2010 Audi TT (8J) 08/2010 - 04/2014

Farbe: schwarz

Technical details: CAN Bus

Connector: 40 Pin Quadlock VAG Connector Connection: OEM steering wheel controls 3.5mm jack / loose cable Connection: 2 channel / 4 channel OEM sound system RCA(m) front/rear Connection: OEM antenna Fakra(m)(double) DIN(m)

blue: +12V antenna remote Blue: +12V Amp Amplifier Remote

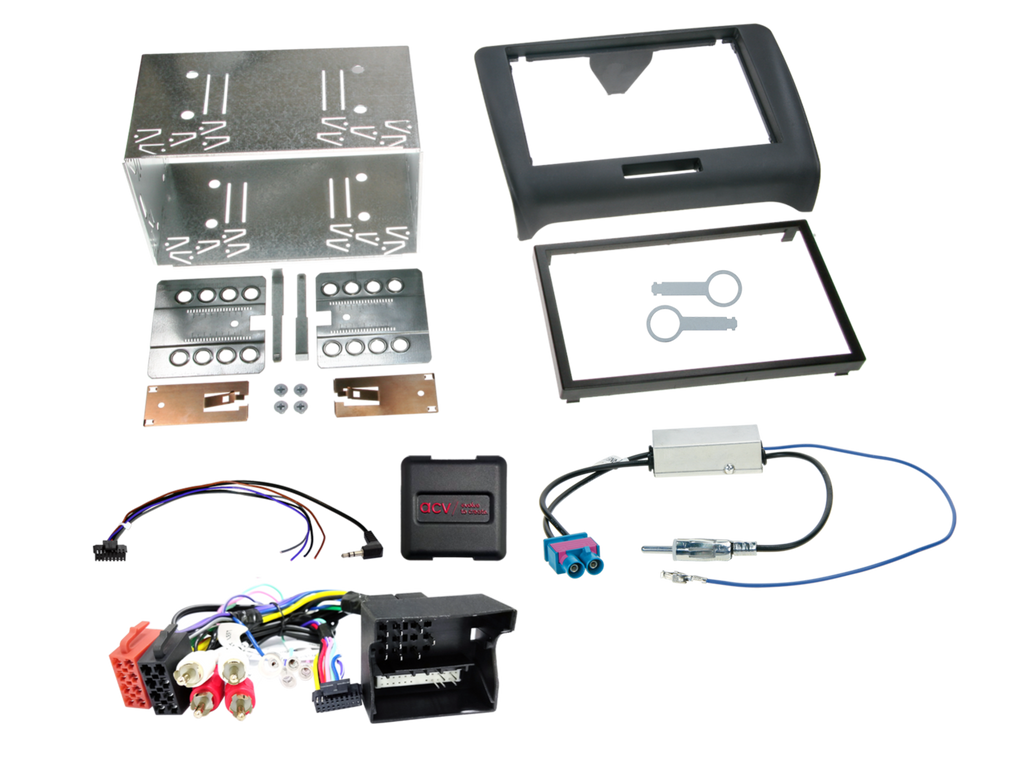

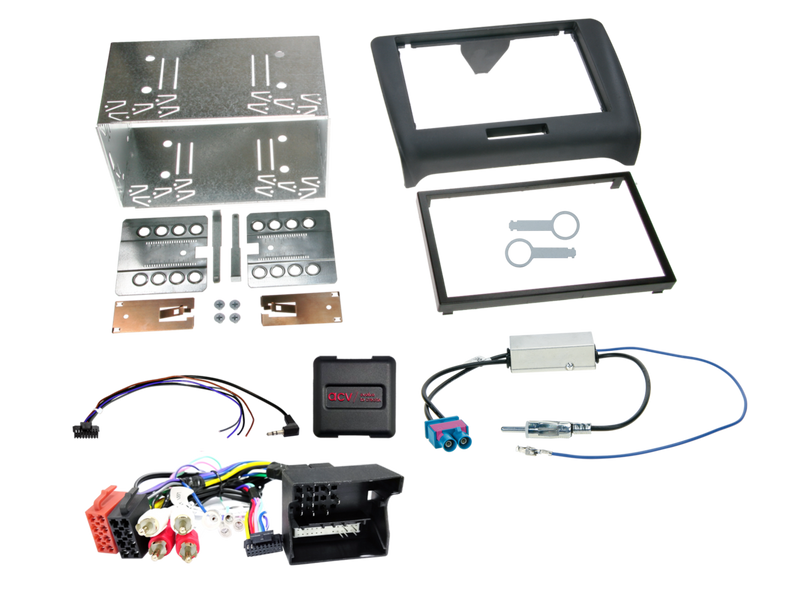

Radio cover with 2-ISO installation kit

Vehicles with Blaupunkt / Matsushita / Grundig Concert II / Symphony II / Chorus II 2-DIN OEM device Vehicles with RNS-E 16:9 OEM Navigation

Vehicles without Bosch BNS 5.0 Monochrom OEM Navigation*

Retrofit devices with preamplifier output power greater than 3V

Retrofit devices with preamplifier output power smaller/greater than 3V: LFB Audi A3/A4/A6/R8/TT 40Pin Quadlock Amp 2/4 Channel Item: 42xad006

Vehicles 08/2010 - 04/2014 in case of non-function OEM sound system: Sound system encoding from CAN bus activation to remote activation required if possible Address J525 Activation 1 Remote (0xxx?xx)

Vehicles with amplifier switch-off noise for the test additionally: Interference Suppression Filter NF Mass Decoupling RCA Article: 30.5000-01

Dip switch settings for the retrofit device manufacturer (see BDA)

Functions and signals: Re-import vehicles or vehicles with different software may be incompatible in functions.

red: +12V ignition terminal 15 orange: +12V lighting terminal 58 purple/white: +12V reversing signal pink: speed signal green: ground GND handbrake signal

Power handling outputs: 250 mA max.

Current requirement greater than 250 mA: 1 relay coil resistance 75 ohm min. 2 Ralais Coil Impedance 150 Ohm min.

steering wheel controls

OEM Sound System 2 Channel/4 Channel

*Vehicles with BNS 5.0 OEM Navigation LFB Audi/Seat/Skoda/VW various vehicles 40Pin Quadlock Item: 42a-1324-001
