ACV 1-DIN / 2-DIN Kit with pocket Saab 9.3(YS3F) 2007-2011 SWC/antenna

Radio cover 1-DIN / 2-DIN with compartment and radio connection kit steering wheel controls Saab

Many car manufacturers install their own vehicle-specific radios that are visually adapted to the center console.

Installation kits contain all components for replacing an OEM device.

Depending on the vehicle′s equipment, all adapters and interfaces required to operate the retrofit device and restore vehicle functions are included in the scope of delivery.

Please note the installation recommendations for the individual components.

Steering wheel remote radio connection kits provide all the necessary analog signals for the operation of an aftermarket radio.

No vehicle functions or settings are supported.

Before installation, check the OEM device and the vehicle menu for various settings.

Depending on the vehicle equipment as well as the range of functions and software of the retrofit device, individual operating functions can be omitted or replaced by other functions.

Compare the plugs of the adapter shown with those in your vehicle and make sure that they fit visually and technically.

Please also check whether one of the specified original factory radios was installed in your vehicle.

Before final assembly, check vehicle functions, vehicle settings and steering wheel controls for function.

Compatibility: Saab 9.3: 2007–2011

Technical details: CAN Bus

Connector: 14 Pin / 18 Pin Saab Connector Connection: OEM steering wheel controls 42ctmultilead Connection: OEM Antenna Fakra(m) DIN(m)

blue: +12V antenna remote blue/white: +12V Amp Remote

Radio panel with 2-ISO cut-out

Installation kit for 2-DIN devices: 2-ISO Radio Aperture ISO universal/103mm x 183mm Item: 381230-00

Vehicles with Fujitsu Ten OEM device Vehicles with manual transmission Vehicles with/without OEM sound system

Vehicles without automatic transmission Vehicles without paddle shifters on the steering wheel

Vehicles with OEM sound system: Active System Adapters Various Vehicles ISOISO Article: 13-1190-50 Active System Adapters Various Vehicles ISOISO Article: 13-1230-51

Suitable for the following vehicles:

Saab 9-3 (YS3F) 09/2007 - 07/2011 Saab 9-3 (YS3F) 07/2011 - 12/2011

Colour: black

Functions and signals: Re-import vehicles or vehicles with different software may be incompatible in functions.

red: +12V ignition terminal 15 orange: +12V lighting terminal 58 purple/white: +12V reversing signal pink: speed signal green: ground GND handbrake signal

Power handling total outputs: 100 mA max.

Current requirement greater than 100 mA: 1 relay coil resistance 75 ohm min. 2 Ralais Coil Impedance 150 Ohm min.

steering wheel controls

Scope of delivery:

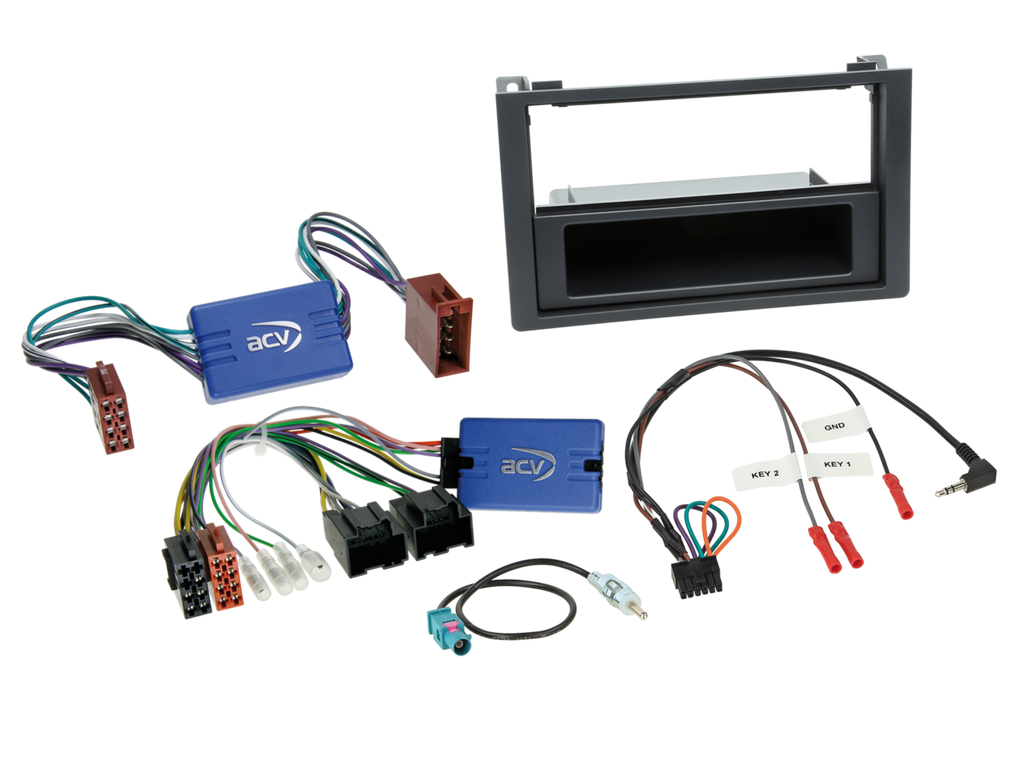

2-ISO radio diaphragm with compartment Saab 9.3 2007-2011 black Article: 281270-01 LFB Saab 9.3 2007-2011/9.5 2005-2010 14Pin/16Pin loose Item: 42xsa001-0 Antenna adapter Fakra(m)DIN(m) passive loose Article: 1524-01-0
